M8 Open End Countersunk Head Rivet Nut - 15.5mm L

Name: M8 Open End Countersunk Head Rivet Nut - 15.5mm L
Brand: Ornit USA
SKU: PSE-4af590
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-4af590

High-strength M8 rivet nut with 15.5mm L, ideal for secure fastening in various applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

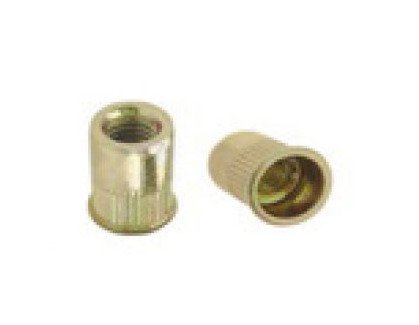

The P-Series M8 Open End Countersunk Head Rivet Nut, with a dimension of 15.5mm, is a high-quality fastening solution for a wide range of applications. Made of durable steel with a yellow zinc plated finish, it offers exceptional strength and corrosion resistance. With a grip range of 1.0mm to 2.5mm, it provides a secure and reliable anchor point. This rivet nut is available in stainless steel and aluminum variants, catering to diverse needs.

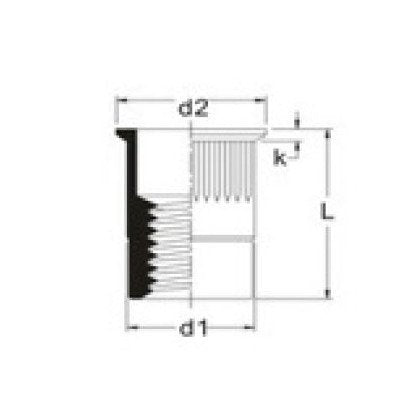

Product Specifications

Dimensions Dimension D1

11.0 mm

Dimensions Dimension D2

12.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

15.5 mm

Dimensions Hole Size

11.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M8 Open End Countersunk Head Rivet Nut - 15.5mm L
