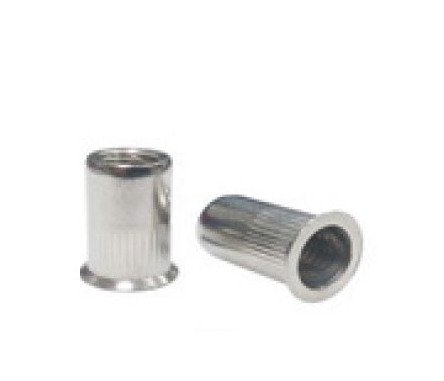

M8 Stainless Steel Countersunk Head Rivet Nut

Name: M8 Stainless Steel Countersunk Head Rivet Nut
Brand: Ornit USA
SKU: MSE-127b57
Price: 14.99 USD
Availability: OutOfStock

SKU:MSE-127b57

Durable M8 stainless steel rivet nut with large countersunk head for secure fastening in various applications.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M8 Stainless Steel Countersunk Head Rivet Nut from the M-Series boasts a durable stainless steel construction with a natural finish. Featuring an open end design and large countersunk head, this rivet nut ensures a secure fastening solution. With dimensions of 18.5mm (L) and M8 thread size, it provides a grip range of 1.5mm to 4.0mm, suitable for a variety of applications. Compliant with federal procurement standards, this rivet nut meets industry certifications and offers reliability and performance.

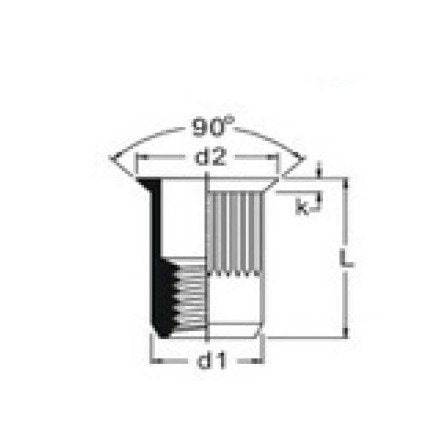

Product Specifications

Dimensions Dimension D1

10.9 mm

Dimensions Dimension L

18.5 mm

Dimensions Hole Size

11.0 mm

Dimensions Maximum Dimension D2

13.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Natural

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Stainless Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M8 Stainless Steel Countersunk Head Rivet Nut
