M8 Steel Rivet Nut 32.5mm L Countersunk Head

Name: M8 Steel Rivet Nut 32.5mm L Countersunk Head
Brand: Ornit USA
SKU: MSE-c67fe1
Price: 24.99 USD
Availability: OutOfStock

SKU:MSE-c67fe1

Premium M8 steel rivet nut for secure and durable fastening. Ideal for industrial and construction projects.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

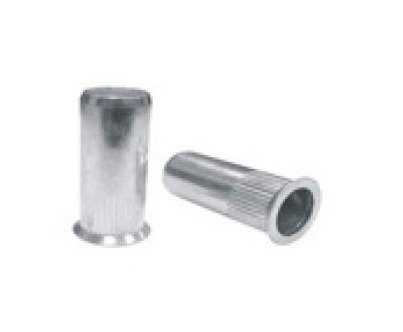

The M-Series 32.5mm Dimension L and M8 Thread Size Closed End Countersunk Head Rivet Nut is a high-quality fastening solution ideal for various applications. Manufactured by Ornit, this steel rivet nut features a zinc-plated finish, ensuring durability and corrosion resistance. With a closed-end design and large countersunk head, it provides a secure and aesthetically pleasing fastening option. Its dimensions, grip range, and hole size meet stringent industry standards, offering reliability and performance.

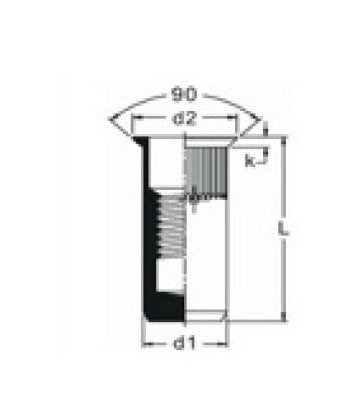

Product Specifications

Dimensions Dimension D1

10.9 mm

Dimensions Dimension L

32.5 mm

Dimensions Hole Size

11.0 mm

Dimensions Maximum Dimension D2

13.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

9.0 mm

Dimensions Minimum Grip Range

6.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

M8 Steel Rivet Nut 32.5mm L Countersunk Head
