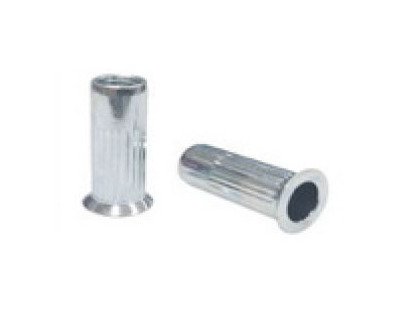

M8 Steel Rivet Nut (Large Countersunk Head, 23.5mm)

Name: M8 Steel Rivet Nut (Large Countersunk Head, 23.5mm)
Brand: Ornit USA
SKU: MSE-84b9a2
Price: 12.99 USD
Availability: OutOfStock

SKU:MSE-84b9a2

High-quality M8 steel rivet nut with large countersunk head for secure flush fit. Available in steel, stainless steel, or aluminum.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M-Series 23.5mm Dimension L and M8 Thread Size Steel Rivet Nut features a large countersunk head, providing a secure and flush fit. This zinc plated rivet nut offers a minimum grip range of 6.5mm and a maximum grip range of 9.0mm. Suitable for a hole size of 11.0mm, it meets high-quality standards for durability. Available in steel, stainless steel, or aluminum, this versatile rivet nut is ideal for a wide range of industrial and construction applications, ensuring reliability and performance.

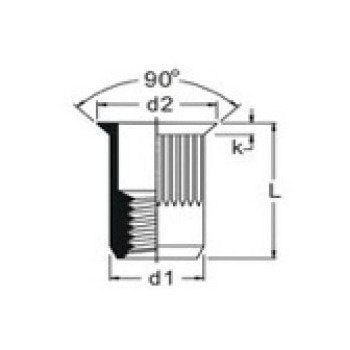

Product Specifications

Dimensions Dimension D1

11.0 mm

Dimensions Dimension L

23.5 mm

Dimensions Hole Size

11.0 mm

Dimensions Maximum Dimension D2

13.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

9.0 mm

Dimensions Minimum Grip Range

6.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M8 Steel Rivet Nut (Large Countersunk Head, 23.5mm)
