M8 Thread Size Cylindrical Rivet Nut, 22.5mm L
M8 Thread Size Cylindrical Rivet Nut, 22.5mm L
SKU:MSE-e2e318
High-quality M8 Cylindrical Rivet Nut for secure fastening in various applications.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
M8 Thread Size Cylindrical Rivet Nut, 22.5mm L
$12.99
Quantity: 1
Claim Your Seller Account
M8 Thread Size Cylindrical Rivet Nut, 22.5mm L
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

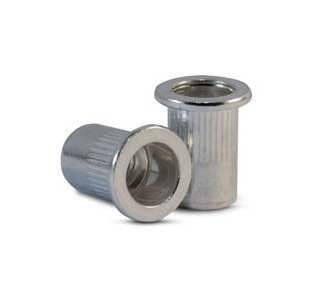

The M-Series Open End Cylindrical Head (Flat) Rivet Nut is a versatile fastening solution for a wide range of applications. Made of high-quality steel with a durable zinc plated finish, this rivet nut features an M8 thread size and a cylindrical head design for secure and reliable fastening. With dimensions optimized for grip range and hole size, it offers exceptional strength and stability. Available in steel, stainless steel, and aluminum options, it meets stringent industry standards for quality and performance.

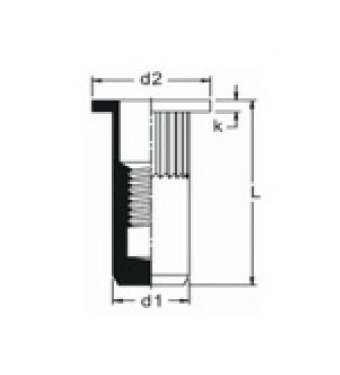

Product Specifications
Dimensions Dimension D1
11.0 mm
Dimensions Dimension L
22.5 mm
Dimensions Hole Size
11.0 mm
Dimensions Maximum Dimension D2
15.0 mm
Dimensions Maximum Dimension K
1.5 mm
Dimensions Maximum Grip Range
8.0 mm
Dimensions Minimum Grip Range
5.5 mm
Note Note
Stainless Steel & Aluminum are available.
Technical Specs Brands
Ornit
Technical Specs Finish
Zinc Plated
Technical Specs Head Style
Cylindrical Head (Flat)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M8
