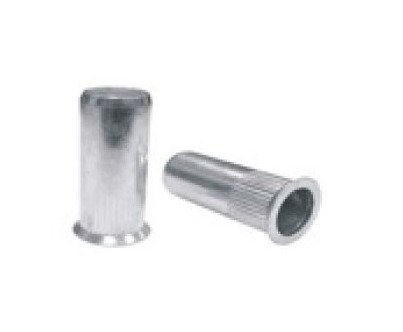

M8 Thread Size Large Rivet Nut, 30.0mm L, Closed End Countersunk Head

Name: M8 Thread Size Large Rivet Nut, 30.0mm L, Closed End Countersunk Head
Brand: Ornit USA
SKU: MSE-2cf1f2
Price: 14.99 USD
Availability: OutOfStock

SKU:MSE-2cf1f2

Secure fastening solution with M8 thread, 30.0mm L, steel construction, and zinc-plated finish.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M-Series 30.0mm Dimension L and M8 Thread Size Closed End Countersunk Head Rivet Nut is an essential component for fastening applications. Made from durable steel with a zinc-plated finish, these rivet nuts offer a secure grip range from 4.0mm to 6.5mm. With a large countersunk head design, they provide a flush finish and are available in stainless steel & aluminum options. Compliant with Federal procurement standards and ideal for heavy-duty industrial use.

Product Specifications

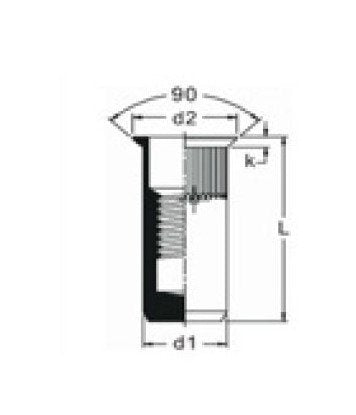

Dimensions Dimension D1

10.9 mm

Dimensions Dimension L

30.0 mm

Dimensions Hole Size

11.0 mm

Dimensions Maximum Dimension D2

13.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

6.5 mm

Dimensions Minimum Grip Range

4.0 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

M8 Thread Size Large Rivet Nut, 30.0mm L, Closed End Countersunk Head
