MAB Series Electric Actuator
MAB Series Electric Actuator
SKU:VAL-e8b3e8
Reliable MAB Series Electric Actuator for automated valve operation in industrial settings. CE & CSA approved, 240 VAC, with fast response time.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MAB Series Electric Actuator
$299.99
Quantity: 1
Claim Your Seller Account
MAB Series Electric Actuator
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MAB Series Electric Actuator is a reliable solution for automated valve operation in a variety of industrial applications. With a durable powder-coated aluminum housing and CE & CSA approvals for NEMA 4 and 4x ratings, this actuator is designed to withstand harsh environments. It features a 240 VAC voltage and operates within a temperature range of 0oF to 160oF (-18oC to 71oC). The actuator offers a 1/2" NPT female conduit connection and a manual override for added flexibility. Its fast 3-second open/close time, compatibility with control systems, and availability in 120 & 220 VAC, 50/60 Hz standard, and 24VDC options make it ideal for laboratories, pilot plants, chemical research facilities, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

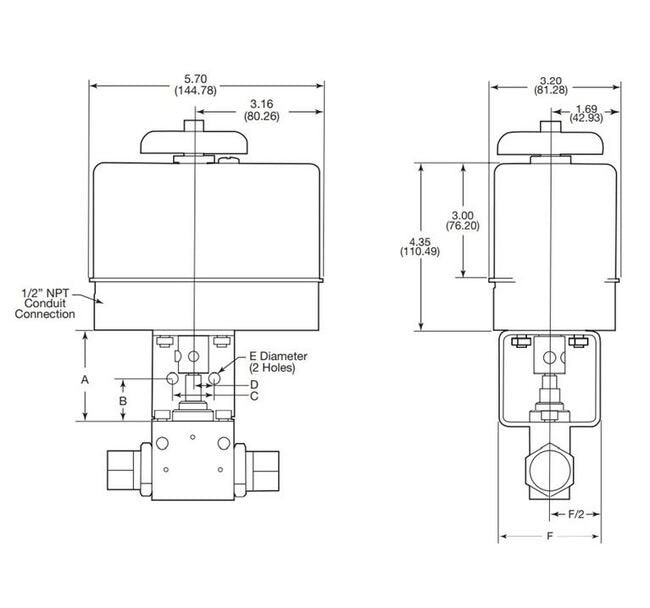

Dimensions A
3.00 in
Dimensions Actuator Height
4.35 in
Dimensions Actuator Length
5.70 in
Dimensions Actuator Width
3.20 in
Dimensions B
1.50 in
Dimensions C
1.00 in
Dimensions D
.50 in
Dimensions E
.28 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
3 sec
Dimensions Voltage
240 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
