MAB Series Electric Actuator - 120 VAC
MAB Series Electric Actuator - 120 VAC
SKU:VAL-d74d49
Efficiently automate valve operations with the MAB Series Electric Actuator - 120 VAC. CE & CSA approved for NEMA 4 and 4x.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MAB Series Electric Actuator - 120 VAC
$299.99
Quantity: 1
Claim Your Seller Account
MAB Series Electric Actuator - 120 VAC
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MAB Series Electric Actuator in 120 VAC is a reliable and versatile solution for automated valve operation. With an operating temperature range from 0oF to 160oF, this actuator features a powder-coated aluminum housing, CE & CSA approvals for NEMA 4 and 4x ratings, and a manual override for added flexibility. Designed for seamless integration with control systems, this actuator ensures precise and efficient performance in a variety of applications, from laboratories to chemical research environments.

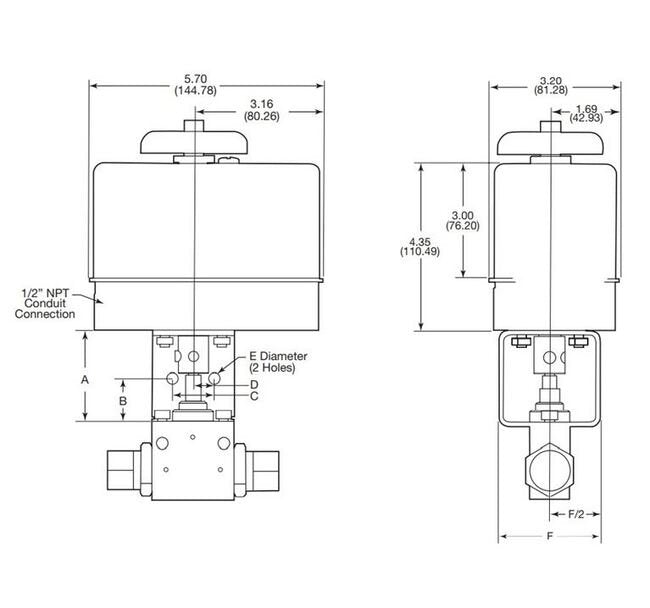

Product Specifications
Dimensions A
3.00 in
Dimensions Actuator Height
4.35 in
Dimensions Actuator Length
5.70 in
Dimensions Actuator Width
3.20 in
Dimensions B
1.50 in
Dimensions C
1.50 in
Dimensions D
.75 in
Dimensions E
.34 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
120 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
