MAB Series Electric Actuator - 120VAC
MAB Series Electric Actuator - 120VAC
SKU:VAL-327e8b
Reliable MAB Series Electric Actuator - Ideal for automated operations. CE, CSA, and ATEX approved. Suitable for diverse applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
MAB Series Electric Actuator - 120VAC
$249.99
Quantity: 1
Claim Your Seller Account
MAB Series Electric Actuator - 120VAC
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MAB Series Electric Actuator is a high-quality solution suitable for a wide range of applications. Operating at temperatures from -4oF to 158oF, this actuator features a powder-coated aluminum housing with CE & CSA approvals. With a manual override, 3/4" NPT female conduit connection, and explosion-proof enclosure, this actuator is designed to comply with NEMA 7 Explosion Proof and ATEX standards. Its watertight enclosure makes it IP68 certified, ensuring durability in various environments. Interface seamlessly with control systems for automated operations and monitoring.
Product Specifications

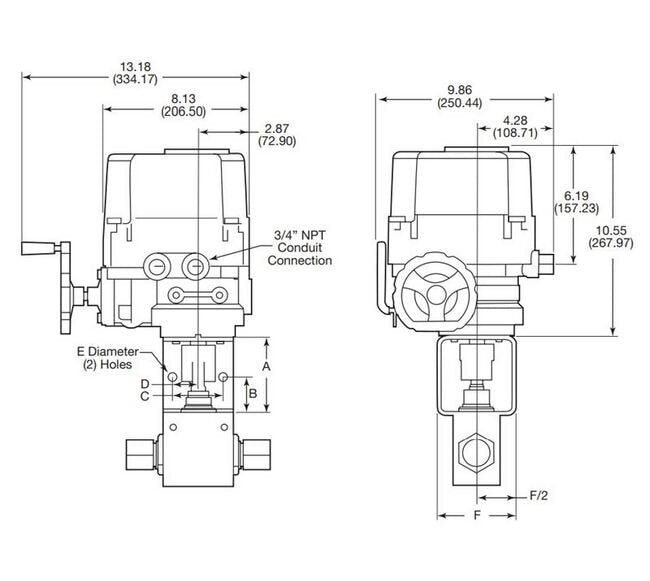

Dimensions A
3.00 in
Dimensions Actuator Height
10.55 in
Dimensions Actuator Length
13.18 in
Dimensions Actuator Width
9.86 in
Dimensions B
1.50 in
Dimensions C
2.00 in
Dimensions D
1.00 in
Dimensions E
.56 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
120 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
