MAB Series Electric Actuator 24VDC
MAB Series Electric Actuator 24VDC
SKU:VAL-7a6740
Efficient MAB Series Electric Actuator 24VDC for precise valve control. With CE & CSA approvals. Ideal for automated operation in laboratories, pilot plants, and control panels.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MAB Series Electric Actuator 24VDC
$299.99
Quantity: 1
Claim Your Seller Account
MAB Series Electric Actuator 24VDC
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MAB Series Electric Actuator 24VDC offers precision and efficiency in valve operation. This electric actuator, with a temperature range of 0oF to 160oF, features a powder-coated aluminum housing for durability. With CE & CSA approvals for NEMA 4 and 4x, it ensures reliable performance in various environments. The actuator integrates seamlessly with control systems for automated operation and monitoring, making it ideal for laboratories, pilot plants, control panels, and more. Available in 120 & 220 VAC, 50/60 Hz standard options, and with ATEX Flameproof and Explosion Proof choices, this actuator is versatile and compliant with industry standards.

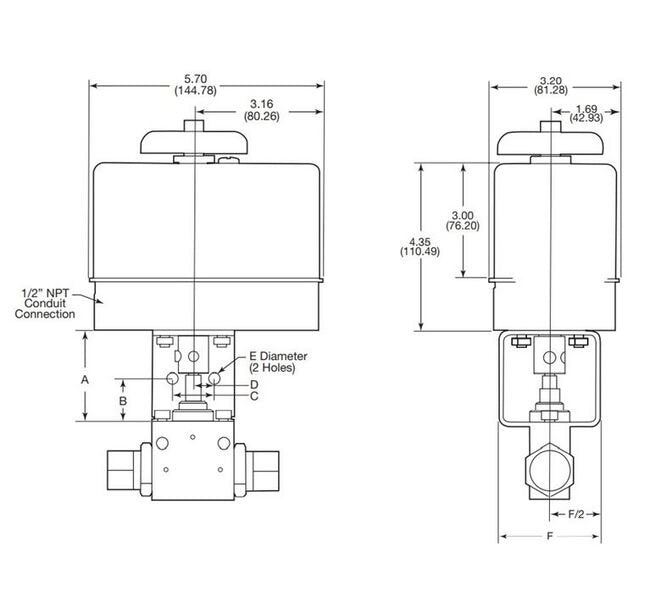

Product Specifications
Dimensions A
3.00 in
Dimensions Actuator Height
4.35 in
Dimensions Actuator Length
5.70 in
Dimensions Actuator Width
3.20 in
Dimensions B
1.50 in
Dimensions C
1.50 in
Dimensions D
.75 in
Dimensions E
.34 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
5 sec
Dimensions Voltage
24 DC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
