The MAC Rack Cases are designed for semi-ruggedized equipment requiring exceptional shock and vibration protection in a lightweight and compact design. With a capacity to safeguard equipment from 20-200 lbs and fragility levels of 50-80 G, these cases excel in field-deployed and sheltered applications. Featuring individually fine-tuned shock mounts, superior cooling airflow, and secure zinc-plated hardware, they provide top-tier protection for delicate electronics, antennas, control consoles, and communication equipment. Ideal for rack mountable precision test equipment, aerospace instrumentation, military mission planning, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Application
Rack mountable precision test equipment.Electro-mechanical.Medical and biological diagnostic equipment, memory storage devices.Meteorological instruments.Mobile operations.Broadcast and video gear.Laboratory equipment.Aerospace instrumentation.Servers, military mission planning.Command control equipment.Flight simulators.
Specifications Features
Ideal for delicate equipment that requires the most protection available, in the widest range of sizes.Individually tine-tuned shock mounts for each application provide excellent shock and vibration dampening plus cooling airflow for operating equipment.Security for equipment from 20-340 lbs.Recessed, zinc-plated, yellow chromate hardware holds up under duress and use.Tool-free rack removal.

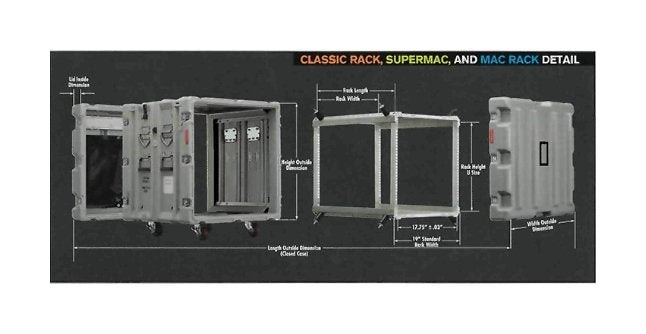

Specifications Height Od
9.6 in | 244 mm
Specifications Length Od
33.6 in | 853 mm
Specifications Lid Id Back
4.4 in
Specifications Lid Id Front
2.2 in
Specifications Rack Height U Size
3U | 5.25 in | 133 mm
Specifications Rack Length
20 in | 508 mm
Specifications Rack Width
19.00 in | 483 mm
Specifications Shipping Cube
4.1 ft³ | 0.12 m³
Specifications Weight
32 lb | 14.5 kg
Specifications Width Od
22.0 in | 559 mm
