MAC Rack Cases - Pelican-Hardigg Rack Cases
MAC Rack Cases - Pelican-Hardigg Rack Cases
SKU:PEL-a476ae
Versatile MAC Rack Cases for sensitive equipment, providing premium protection in compact dimensions.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MAC Rack Cases - Pelican-Hardigg Rack Cases
$299.99
Quantity: 1
Claim Your Seller Account
MAC Rack Cases - Pelican-Hardigg Rack Cases
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

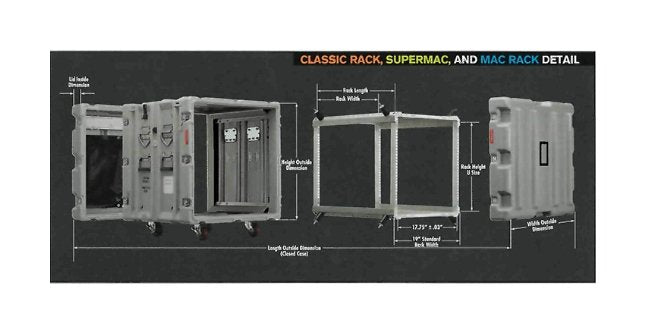

The MAC Rack Cases are designed for semi-ruggedized equipment that demands superior shock and vibration protection in a compact form. With capabilities to safeguard equipment ranging from 20-200 lbs and fragility of 50-80 G, these cases excel in field-deployed and sheltered applications. Featuring a 4U rack height size and dimensions of 24.00 x 19.00 x 11.4 inches, these cases offer individually tuned shock mounts for optimal protection, efficient cooling airflow, and tool-free rack removal. Ideal for various applications including precision test equipment, aerospace instrumentation, and military mission planning, these cases ensure top-notch security for equipment up to 340 lbs.
Product Specifications
Specifications Application
Rack mountable precision test equipment.Electro-mechanical.Medical and biological diagnostic equipment, memory storage devices.Meteorological instruments.Mobile operations.Broadcast and video gear.Laboratory equipment.Aerospace instrumentation.Servers, military mission planning.Command control equipment.Flight simulators.
Specifications Features
Ideal for delicate equipment that requires the most protection available, in the widest range of sizes.Individually tine-tuned shock mounts for each application provide excellent shock and vibration dampening plus cooling airflow for operating equipment.Security for equipment from 20-340 lbs.Recessed, zinc-plated, yellow chromate hardware holds up under duress and use.Tool-free rack removal.
Specifications Height Od
11.4 in | 289 mm
Specifications Length Od
37.6 in | 955 mm
Specifications Lid Id Back
4.4 in
Specifications Lid Id Front
2.2 in
Specifications Rack Height U Size
4U | 7.00 in | 178 mm
Specifications Rack Length
24.00 in | 610 mm
Specifications Rack Width
19.00 in | 483 mm
Specifications Shipping Cube
5.4 ft³ | 0.15 m³
Specifications Weight
36 lb | 16.2 kg
Specifications Width Od
22.0 in | 559 mm
