MAC Rack Cases - Shock and Vibration Protected Rack Mount Cases
MAC Rack Cases - Shock and Vibration Protected Rack Mount Cases
SKU:PEL-7c00f6
MAC Rack Cases provide superior shock protection for delicate equipment in field deployments. Ideal for solid-state electronics, radar antennas, and control consoles.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
MAC Rack Cases - Shock and Vibration Protected Rack Mount Cases
$499.99
Quantity: 1
Claim Your Seller Account
MAC Rack Cases - Shock and Vibration Protected Rack Mount Cases
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MAC Rack Cases are specifically designed to provide exceptional shock and vibration protection for semi-ruggedized equipment weighing between 20-200 lbs. With precise Rack Height U Size of 9U, these cases offer ideal shielding for delicate equipment like solid-state circuit electronics, radar antennas, or control consoles in field-deployed and sheltered applications. Each case comes equipped with individually tuned shock mounts, ensuring superior dampening of vibrations and cooling airflow for optimal equipment operation. Additionally, the recessed zinc-plated hardware and tool-free rack removal feature enhance durability and ease of use, making them perfect for precision test equipment, medical devices, aerospace instrumentation, and more.

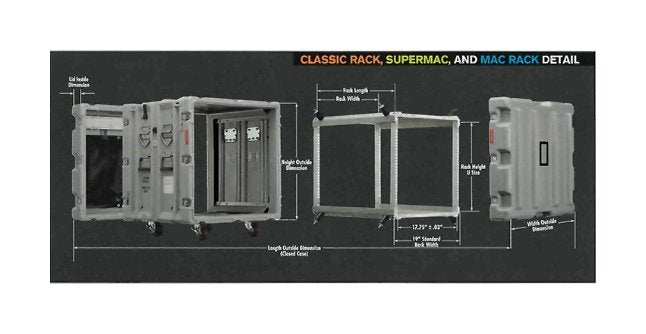

Product Specifications
Specifications Application
Rack mountable precision test equipment.Electro-mechanical.Medical and biological diagnostic equipment, memory storage devices.Meteorological instruments.Mobile operations.Broadcast and video gear.Laboratory equipment.Aerospace instrumentation.Servers, military mission planning.Command control equipment.Flight simulators.
Specifications Features
Ideal for delicate equipment that requires the most protection available, in the widest range of sizes.Individually tine-tuned shock mounts for each application provide excellent shock and vibration dampening plus cooling airflow for operating equipment.Security for equipment from 20-340 lbs.Recessed, zinc-plated, yellow chromate hardware holds up under duress and use.Tool-free rack removal.
Specifications Height Od
20.2 in | 512 mm
Specifications Length Od
40.1 in | 1019 mm
Specifications Lid Id Back
4.4 in
Specifications Lid Id Front
4.4 in
Specifications Rack Height U Size
9U | 15.75 in | 400 mm
Specifications Rack Length
24.00 in | 610 mm
Specifications Rack Width
19.00 in | 483 mm
Specifications Shipping Cube
10.6 ft³ | 0.30 m³
Specifications Weight
49 lb | 22.4 kg
Specifications Width Od
22.6 in | 575 mm
