MAC Rack Cases - Shock-Proof Protection for Delicate Equipment
MAC Rack Cases - Shock-Proof Protection for Delicate Equipment
SKU:PEL-88d9c5
MAC Rack Cases provide unparalleled shock-proof protection for delicate equipment, ideal for field-deployed applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
MAC Rack Cases - Shock-Proof Protection for Delicate Equipment
$399.99
Quantity: 1
Claim Your Seller Account
MAC Rack Cases - Shock-Proof Protection for Delicate Equipment
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MAC Rack Cases are designed for semi-ruggedized equipment requiring superior shock and vibration protection. With a range of 7U rack heights and precise dimensions, these cases safeguard equipment weighing 20-200 lbs with 50-80 G fragility. Built for field-deployment and sheltered applications, they are ideal for solid-state circuit electronics, radar antennas, control panels, and more. Featuring individually-tuned shock mounts, cooling airflow, and robust hardware, these cases ensure the highest level of protection for delicate equipment in various applications.
Product Specifications
Specifications Application
Rack mountable precision test equipment.Electro-mechanical.Medical and biological diagnostic equipment, memory storage devices.Meteorological instruments.Mobile operations.Broadcast and video gear.Laboratory equipment.Aerospace instrumentation.Servers, military mission planning.Command control equipment.Flight simulators.
Specifications Features
Ideal for delicate equipment that requires the most protection available, in the widest range of sizes.Individually tine-tuned shock mounts for each application provide excellent shock and vibration dampening plus cooling airflow for operating equipment.Security for equipment from 20-340 lbs.Recessed, zinc-plated, yellow chromate hardware holds up under duress and use.Tool-free rack removal.

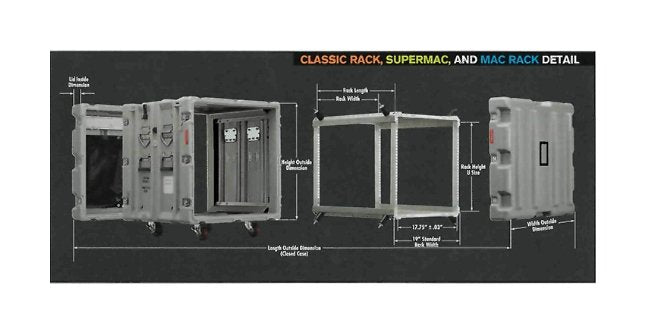

Specifications Height Od
16.6 in | 422 mm
Specifications Length Od
36.1 in | 917 mm
Specifications Lid Id Back
4.4 in
Specifications Lid Id Front
4.4 in
Specifications Rack Height U Size
7U | 12.25 in | 311 mm
Specifications Rack Length
20 in | 508 mm
Specifications Rack Width
19.00 in | 483 mm
Specifications Shipping Cube
7.9 ft³ | 0.22 m³
Specifications Weight
44 lb | 20.0 kg
Specifications Width Od
22.6 in | 575 mm
