MAC Rack Cases - Shock-Protected Rack Case
MAC Rack Cases - Shock-Protected Rack Case
SKU:PEL-aa98ef
MAC Rack Cases offer top-notch shock protection for delicate equipment up to 340 lbs in a compact design, ideal for various applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
MAC Rack Cases - Shock-Protected Rack Case
$799.99
Quantity: 1
Claim Your Seller Account
MAC Rack Cases - Shock-Protected Rack Case
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MAC Rack Cases provide superior shock and vibration protection, ideal for delicate equipment ranging from 20 to 340 lbs. Designed for field-deployed and sheltered applications, these rack cases feature individually tuned shock mounts for precise dampening, cooling airflow, and tool-free rack removal. With dimensions of 24.00 x 19.00 x 15.75 inches, these cases are perfect for solid-state circuit electronics, radar systems, control consoles, and more. Trust the MAC Rack Cases to safeguard your equipment in the most demanding environments.
Product Specifications
Specifications Application
Rack mountable precision test equipment.Electro-mechanical.Medical and biological diagnostic equipment, memory storage devices.Meteorological instruments.Mobile operations.Broadcast and video gear.Laboratory equipment.Aerospace instrumentation.Servers, military mission planning.Command control equipment.Flight simulators.
Specifications Features
Ideal for delicate equipment that requires the most protection available, in the widest range of sizes.Individually tine-tuned shock mounts for each application provide excellent shock and vibration dampening plus cooling airflow for operating equipment.Security for equipment from 20-340 lbs.Recessed, zinc-plated, yellow chromate hardware holds up under duress and use.Tool-free rack removal.

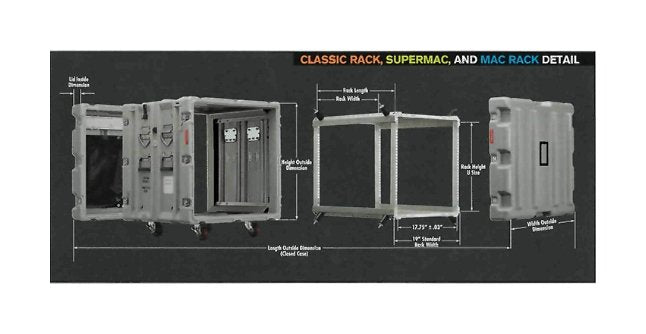

Specifications Height Od
20.2 in | 512 mm
Specifications Length Od
37.6 in | 955 mm
Specifications Lid Id Back
4.4 in
Specifications Lid Id Front
2.2 in
Specifications Rack Height U Size
9U | 15.75 in | 400 mm
Specifications Rack Length
24.00 in | 610 mm
Specifications Rack Width
19.00 in | 483 mm
Specifications Shipping Cube
9.9 ft³ | 0.28 m³
Specifications Weight
48 lb | 21.9 kg
Specifications Width Od
22.6 in | 575 mm
