MADBN Series Double Block and Bleed Needle Valves - 15000 psi
MADBN Series Double Block and Bleed Needle Valves - 15000 psi
SKU:VAL-02a543
Reliable MADBN Series Needle Valves - 15000 psi, 9/16 MPI™ connection, for high-pressure applications
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
MADBN Series Double Block and Bleed Needle Valves - 15000 psi
$249.99
Quantity: 1
Claim Your Seller Account
MADBN Series Double Block and Bleed Needle Valves - 15000 psi
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

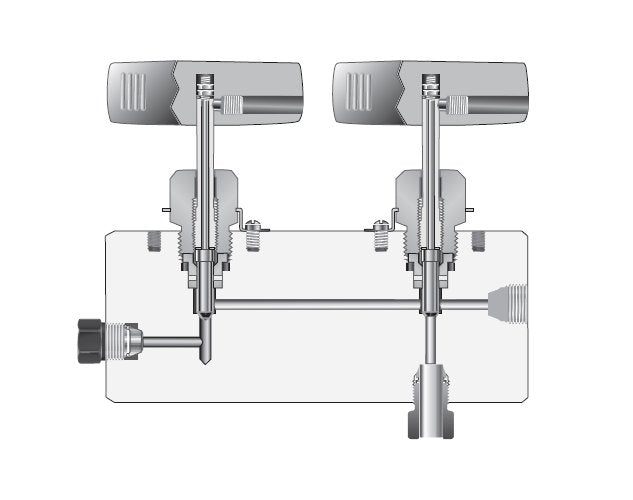

The MADBN Series Double Block and Bleed Needle Valves are engineered for high-pressure applications, with a maximum pressure rating of 15000 psi. Featuring a 9/16 MPI™ connection, .093 in orifice, and precise dimensions, these valves ensure reliable performance and leak-tight sealing. Designed for durability and easy installation, they come with vent connections of 1/4" NPT. With an option for 2507 Super Duplex material and XF Ferrules for specific tubing sizes, these valves meet the stringent requirements of industrial operations.
Ready to Grow Without Cash Flow Constraints?

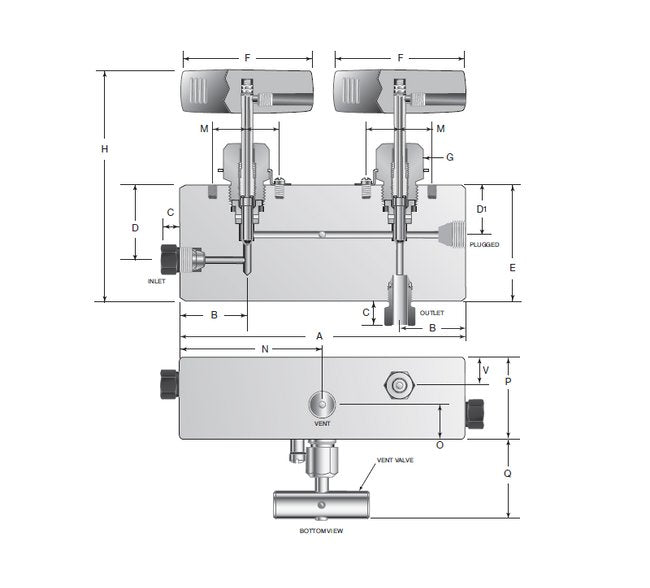

Product Specifications
Dimensions A
7.50 in
Dimensions B
1.50 in
Dimensions C
.75 in
Dimensions Connection
9/16 MPI™
Dimensions D
2.38 in
Dimensions D1
1.75 in
Dimensions E
3.58 in
Dimensions F
4.00 in
Dimensions G
1.00 in
Dimensions H
6.63 in
Dimensions M
.69 in
Dimensions N
3.75 in
Dimensions O
.63 in
Dimensions Orifice
.093 in
Dimensions P
1.50 in
Dimensions Pressure
15000 psi
Dimensions Q
1.47 in
Dimensions V
0.50 in
