Magneflex Rubber Magnet
Magneflex Rubber Magnet
SKU:MAG-7b5b23
High-performance rubber magnet with exceptional magnetic energy and excellent machinability. Ideal for technical applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Magneflex Rubber Magnet
$29.99
Quantity: 1
Claim Your Seller Account
Magneflex Rubber Magnet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Magneflex Rubber Magnet is a high-performance permanent magnet crafted from barium ferrite materials securely bonded in rubber. Despite a 36% volumetric dilution by the rubber matrix, it boasts exceptional magnetic energy, surpassing that of non-oriented ceramic magnets. With excellent machinability and resistance to shock, this magnet offers superior performance in various technical applications. Available in different stock sizes and magnetization patterns, it can be easily machined into intricate shapes. Ideal for industrial, commercial, and institutional use, the Magneflex Rubber Magnet ensures reliability and durability in magnetic assemblies.
Product Specifications
Effect Of Vibration And Shock 0
The magnetic properties of Magneflex are dependent on the alignment of barium ferrite particles within a resilient matrix. Since the mechanically aligned particles are immobilized, vibration and shock have no noticeable effect upon its magnetic properties.
Magnetization Patterns 0

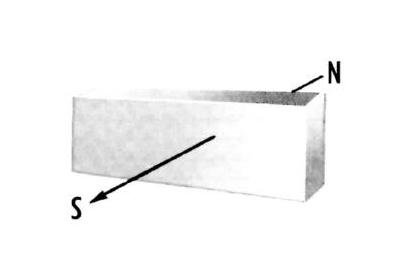

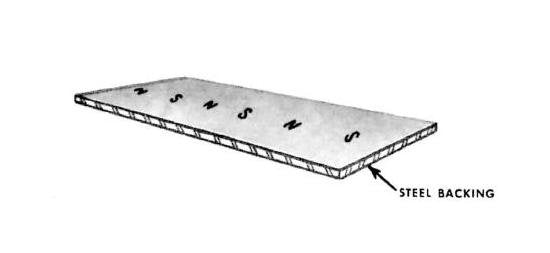

Conventional: North pole on one side, south pole on the other. Generally used in closed-circuit designs when magnet is to be assembled between pole pieces, in channels, and in technical applications where this type of polarity is required.Multiple Pole: Alternating north and south poles in wide sheets and slabs. Generally used in open-circuit applications. Steel backing is desirable, where practical.
Specifications Available Magnetization Patterns
2
Specifications Compressive Yield Strength
3750 psi
Specifications Fastening Methods
Mechanical fasteners such as rivets, screws, etc. may be used to hold assemblies together. Generally it is not necessary to countersink for rivet or screw heads because of compressibility of the material.
Specifications Hardness
Shore D65
Specifications Machinability
Excellent
Specifications Machining

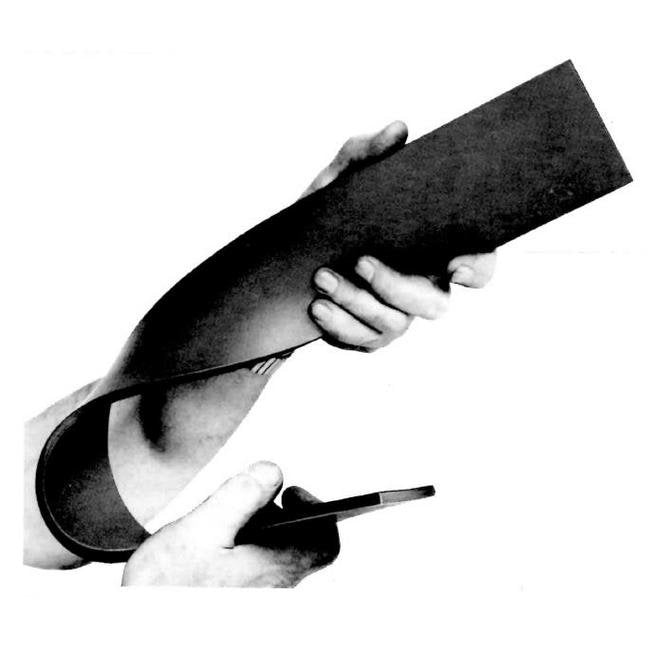

Magneflex can be cut, punched, drilled, milled. Can be machined into intricate shapes.
Specifications Maximum Operating Temperature
200 ºF
Specifications Molded Thickness
0.005
Specifications Shock Resistance
Excellent
Specifications Stock Sizes
1/32 in X 3 in X 36 in | 1/16 in X 3 in X 36 in | 1/8 in X 3 in X 36 in | 1/4 in X 3 in X 24 in | 3/8 in X 3 in X 24 in | 3/16 in X 3 in X 24 in | 1/4 in X 6 1/4 in X 24 in
Specifications Tensile Strength
640 psi
Specifications Volumetric Dilution
36 %
