Magnetic Coolant Filter System
Magnetic Coolant Filter System
SKU:SPE-9834b1
Efficiently remove swarf with the high-volume Magnetic Coolant Filter System, ensuring clean coolant for optimal machining performance.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Magnetic Coolant Filter System
$2,899.99
Quantity: 1
Claim Your Seller Account
Magnetic Coolant Filter System
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

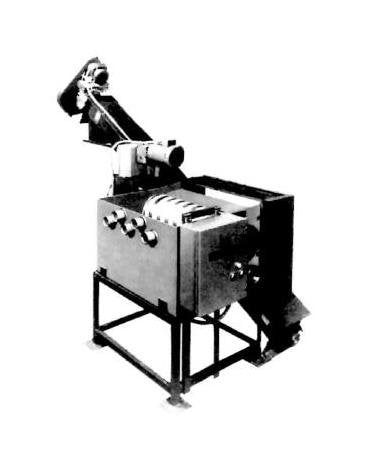

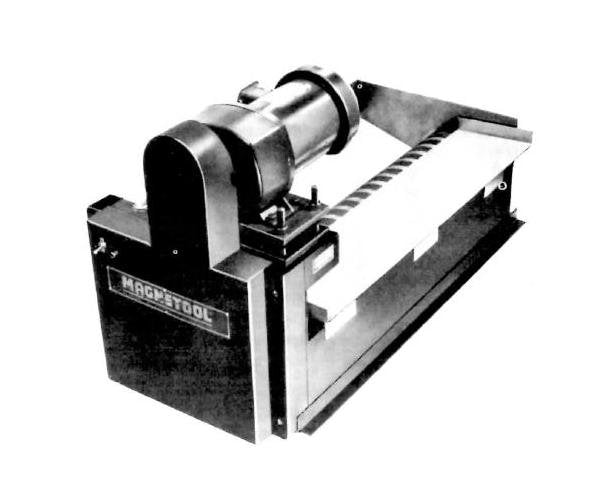

The Magnetic Coolant Filter System is a high-volume solution that features a 12-inch diameter by 36-inch wide magnetic drum with a screw conveyor for efficient removal of collected swarf to a skid box. With a 1/4 hp motor power, 80 gpm capacity, and dimensions of 34 1/2 in (A) by 29 1/2 in (B), this filter ensures clean coolant for uniform part finish, extended tool and grinding wheel life, reduced machine wear, lower coolant replacement costs, and minimal downtime. Suitable for centralized coolant systems, it is ideal for maintaining machining efficiency and cost-effectiveness.
Product Specifications
Manufacturing Notes 0
Listed are the most popular sizes. For special applications consult the factory
Specifications Advantages
Having clean coolant is cost effective. Not only does it allow uniform part finish, but you can expect longer life from tools and grinding wheels, reduced pump and machine wear, lower coolant replacement costs, and less down time.
Specifications Capacity
80 gpm

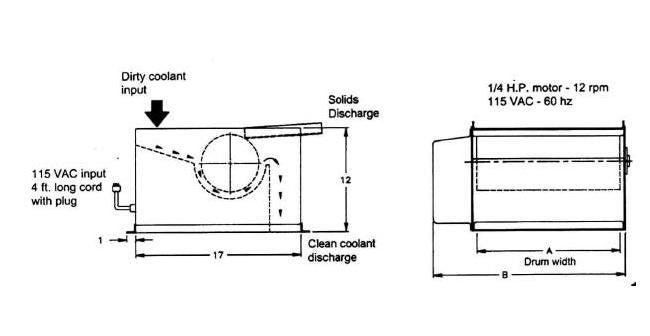

Specifications Dimension A
34 1/2 in
Specifications Dimension B
29 1/2 in
Specifications Magnetic Drum Diameter
12 in
Specifications Magnetic Drum Width
36 in
Specifications Motor Frequency
60 Hz
Specifications Motor Input Voltage Ac
115 V
Specifications Motor Power
1/4 hp
Specifications Motor Speed
12 rpm
Specifications Weight
380 lb
