Magnetic Single Angle Sine Plate
Magnetic Single Angle Sine Plate
SKU:STA-d7bede
Achieve precise angular setups effortlessly with the Magnetic Single Angle Sine Plate. High power Ceramic magnets, steel & stainless steel construction, and 72 in² surface area ensure accuracy and efficiency.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Magnetic Single Angle Sine Plate
$899.99
Quantity: 1
Claim Your Seller Account
Magnetic Single Angle Sine Plate
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

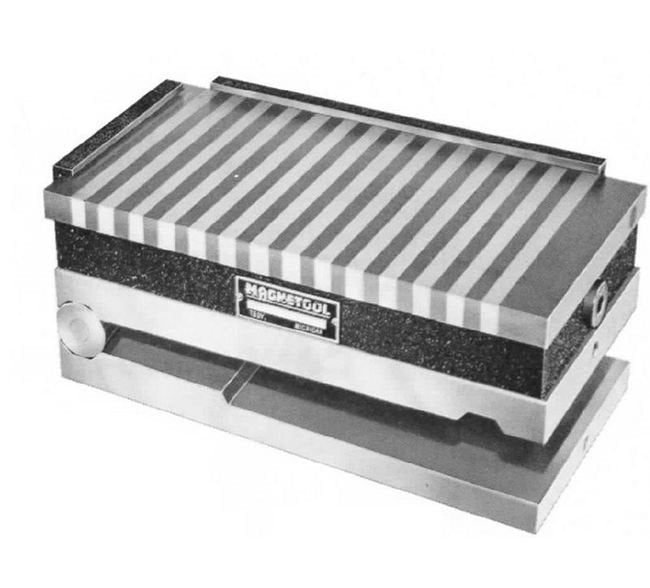

The Magnetic Single Angle Sine Plate by MAGNETOOL is a precision instrument tailored for quick angular setups. Featuring high power Ceramic magnets for consistent strength, steel and stainless steel top plates, and a standard pole spacing of 3/8 in. This SAE .8620 Steel Carburized plate offers a surface area of 72 in², standing at 4 3/4 in height and weighing 65 lb. With a material hardness of 58 to 60 Rockwell C, it ensures accuracy with a tolerance of .0003 in squareness, parallelism, and between rolls. This single angle plate meets SAE standards for reliability.
Product Specifications
Additional Information 0
Tolerance in squareness, parallelism and between rolls on 363 and 66 is .0002, 612 is .0003, 618 is .0004. Plates and rolls are made of SAE .8620 steel carburized and hardened to 58 to 60 Rockwell "C" scale.
Specifications Height
4 3/4 in
Specifications Material Hardness
58 to 60 Rockwell C
Specifications Plate And Roll Material
SAE .8620 Steel Carburized
Specifications Sine
10.000
Specifications Standards
SAE
Specifications Standard Pole Spacing
3/8 in
Specifications Surface Area
72 in²
Specifications Tolerance
.0003 in
Specifications Type
Single Angle
Specifications Weight
65 lb
