Magnetic Variable Reluctance Speed Sensor with M8 Lead Wire and Connector
Magnetic Variable Reluctance Speed Sensor with M8 Lead Wire and Connector
SKU:MAG-c0c9a1
High-performance Magnetic Variable Reluctance Speed Sensor with rugged construction, high output voltage, and versatile configurations for precision speed sensing.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Magnetic Variable Reluctance Speed Sensor with M8 Lead Wire and Connector
$99.99
Quantity: 1
Claim Your Seller Account
Magnetic Variable Reluctance Speed Sensor with M8 Lead Wire and Connector
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

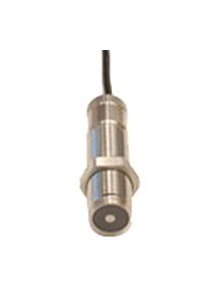

Experience top-notch speed sensing with the Spectec Magnetic Variable Reluctance Speed Sensor featuring a rugged 1/4" magnetic pickup. These sensors offer high output voltage, versatile configuration options, and exceptional performance across various applications. With coil resistance ranging from 40 Ω to 160 Ω, inductance up to 14 mH, and peak-to-peak output voltage reaching 12 V, this sensor ensures precision and reliability. Built with Tetrafluoroethylene lead wires and solid encapsulation in 300 Series Stainless Steel, it guarantees durability. Whether you need temperature resistance from as low as -268°C to as high as 450°C or compliance with European Standards (EN)50082-2 and (EN)55011, this sensor is your go-to choice. Contact us for customization options to tailor this sensor to your exact requirements.
Product Specifications
Additional Information Additional Information
High temperature and cryogenic versions can be used in temperatures from -268°C to +232°C (-450°F to +450°F). Extreme temperature versions can be special ordered for temperatures up to 450°C (850°F). Intrinsically Safe and Explosion/Flame Proof versions are also available for Hazardous Locations. The output of this sensor can be converted to a digital signal with a Signal Amplifier. This sensor type can typically be replaced by an Amplified Variable Reluctance Speed Sensor or Hall Effect.
Options Options
For different length, material of construction, configuration, special pole-piece types, thread size, hermetically sealed, precision custom magnetization, custom connector and/or cable termination, please contact factory.
Technical Specs Brands
Spectec
Technical Specs Coil Resistance Type 0
40 Ω
Technical Specs Coil Resistance Type 1
100 Ω
Technical Specs Coil Resistance Type 2
160 Ω
Technical Specs Construction
300 Series Stainless SteelSolid Encapsulation
Technical Specs European Conformity Ce Compliance
European Standards (EN)50082-2 | European Standards (EN)55011
Technical Specs Extended Pole Diameter
0.040 in
Technical Specs Extended Pole Height
0.02 in
Technical Specs Flush Pole Diameter
0.040 in
Technical Specs Inductance Type 0
4 mH
Technical Specs Inductance Type 1
10 mH
Technical Specs Inductance Type 2
14 mH
Technical Specs Lead Wire Material
Tetrafluoroethylene (TFE)
Technical Specs Lead Wire Size
26 to 28 AWG

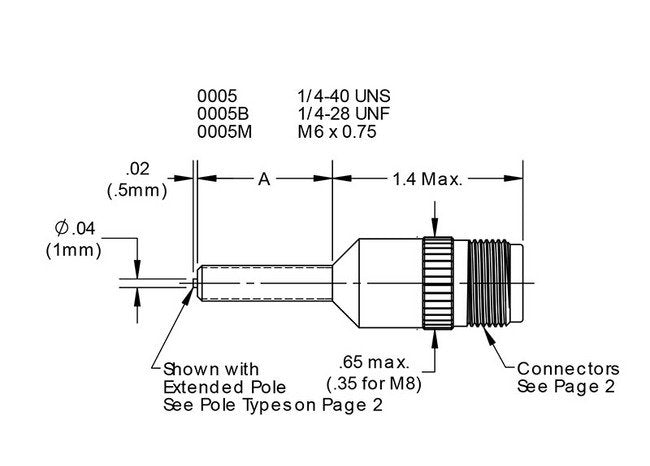

Technical Specs Note For Extended Pole Height
0005 Shown with Extended Pole
Technical Specs Note For Peak To Peak Output Voltage
When tested at 1000 IPS against 20 pitch, 30 tooth gear at 0.005" gap, 100K Ohm load. Inductance and output voltage notations are max values.
Technical Specs Peak To Peak Output Voltage Type 0
4 V
Technical Specs Peak To Peak Output Voltage Type 1
6 V
Technical Specs Peak To Peak Output Voltage Type 2
12 V
Technical Specs Temperature Range 3t
-101 to 165 ºC | -150 to 330 ºF
Technical Specs Temperature Range 5ht
-268 to 232 ºC | -450 to 450 ºF
Technical Specs Standard Magnetization
500 Gauss
