Magnetool T-Series Tramp Iron Trap Filter
Magnetool T-Series Tramp Iron Trap Filter
SKU:TSE-80a05e
Efficiently trap iron particles in sand, grain, foods, and liquids with the powerful Magnetool T-Series Tramp Iron Trap Filter. Designed for community tank setups to prevent tool wear and damage.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Magnetool T-Series Tramp Iron Trap Filter
$499.99
Quantity: 1
Claim Your Seller Account
Magnetool T-Series Tramp Iron Trap Filter
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

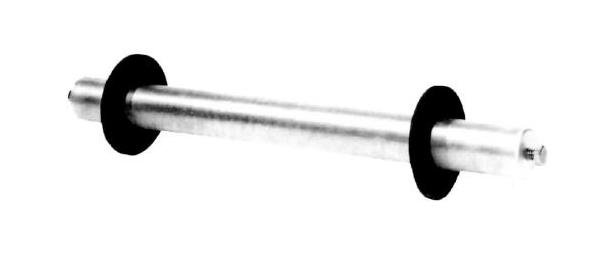

The Magnetool T-Series Tramp Iron Trap Filter is a powerful solution designed to efficiently trap iron particles in sand, grain, foods, and liquids. With options for Alnico and Neodymium magnets and easy maintenance features like a neoprene wiper ring, this filter ensures a clean and uninterrupted flow in community tank setups, preventing costly damage and tool wear. Engineered with aluminum housing and available in different lengths, it meets the demanding standards of government and institutional procurement.
Product Specifications
Additional Information 0

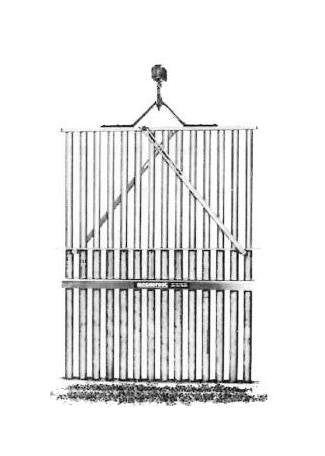

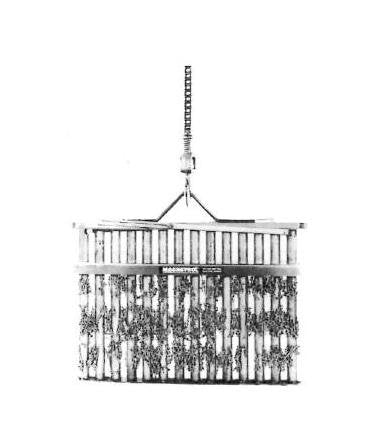

Community Tank FiltersEngineered to fit the Job.Have only clean coolant flowing to the work area. Our engineers are available to help you.In large community coolant tanks, heavy chips will sink to the bottom and remain there, but lighter chips, filings and grindings will stay in suspension, returning to the work area. They often cause costly damage to tools and workpiece.Magnetool filters trap all steel and iron particles passing through the coolant tank, reduce wear in coolant pumps, extend tool life in multiple cuffing and drilling operations, save down-time, increase production.This Magnetool magnetic filter is used in a community coolant tank serving a battery of machines. It has eliminated broken tools and saved many production hours. To clean, it is lifted from the tank; stainless steel tubes encasing the magnets are disengaged chips fall off.
Manufacturing Notes 0
Housing Material: Standard housing is aluminum. Stainless Steel available on special request.
Specifications Available Magnet
Alnico | Neodymium
Specifications Features
Easy to install | Load simply drops off | Requires no maintainance
Specifications Magnet Length
47 7/8 in
Specifications Overall Length
51 7/8 in
Specifications Standard Housing Material
Aluminum
Specifications Standard Magnet
Ceramic
Specifications Tube Diameter
1 1/8 in
Applications 0

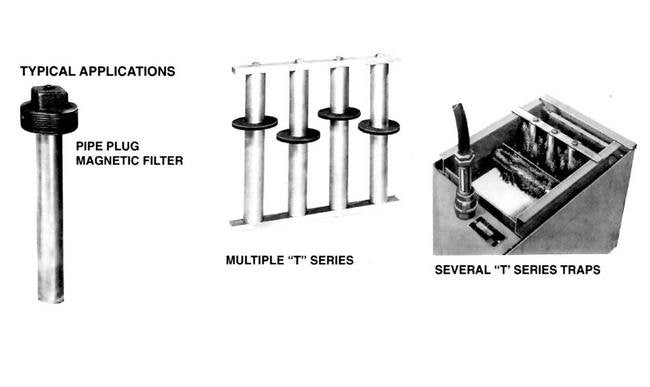

Pipe Plug Magnetic FilterDesigned to fit into the reservoir of a hydraulic fluid system. Can be made any length, any magnetic strength to fit your needs. Clean by wiping with waste, cloth or paper towel.Multiple "T" SeriesAssembled into a grate can be used in a chute or hopper to remove ferrous contaminants from sand, grain, dry foods and crushed or powdered materials.Several "T" Series TrapsMay be attached to a bar and suspended in a tank of flowing liquid. Where desirable, traps may be mounted horizontally.
