MagPro Electromagnetic Chuck Controller
MagPro Electromagnetic Chuck Controller
SKU:SDS-5c22aa
The MagPro Electromagnetic Chuck Controller offers precise chuck demagnetization with 300 W power, 240 V/480 V input voltage, and variable power control. Ideal for industrial needs.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
MagPro Electromagnetic Chuck Controller
$349.99
Quantity: 1
Claim Your Seller Account
MagPro Electromagnetic Chuck Controller
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

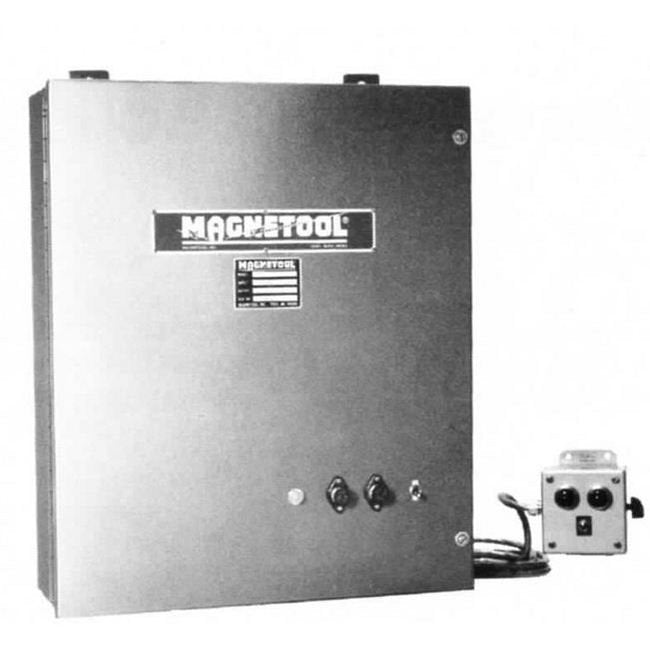

The MagPro Electromagnetic Chuck Controller from the SD Series is designed for superior chuck demagnetization needs and high wattage-rated chucks. With a power of 300 W and AC Input Voltage options of 240 V or 480 V, this controller offers precise control over the chuck operation. The main enclosure, 14 in wide, 16 in tall, and 6 in deep, can be rear-mounted or wall-mounted for convenience. Featuring an On-Off switch, green and red power indicator lights, and a variable power switch, this controller ensures easy part removal with its 0 to 100% variable power control. Perfect for industrial applications requiring precision and efficiency.
Product Specifications
Additional Information 0
The green light indicates power is on. The red light indicates the chuck has power. When the control switch is turned to "Mag-Off" the red light will gradually fade out. The operator can then remove the work with ease. The variable power switch on the side can be dialed for full power to residual.
Specifications Ac Input Voltage
240 V | 480 V
Specifications Advantages
The operator can then remove the part with ease. The variable power control provides 0 to 100% power.
Specifications Dc Output Voltage
0 to 230 V
Specifications Main Enclosure Depth
6 in
Specifications Main Enclosure Height
16 in
Specifications Main Enclosure Width
14 in
Specifications Power
300 W
