Mahr Digital Comparator - Advanced Model

Name: Mahr Digital Comparator - Advanced Model
Brand: Penn Tool Co.
SKU: COM-bd0c98
Price: 1299.99 USD
Availability: OutOfStock

SKU:COM-bd0c98

Enhance industrial measurement accuracy with the Mahr Digital Comparator. Precision, longevity, and efficiency in one device.

$1,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

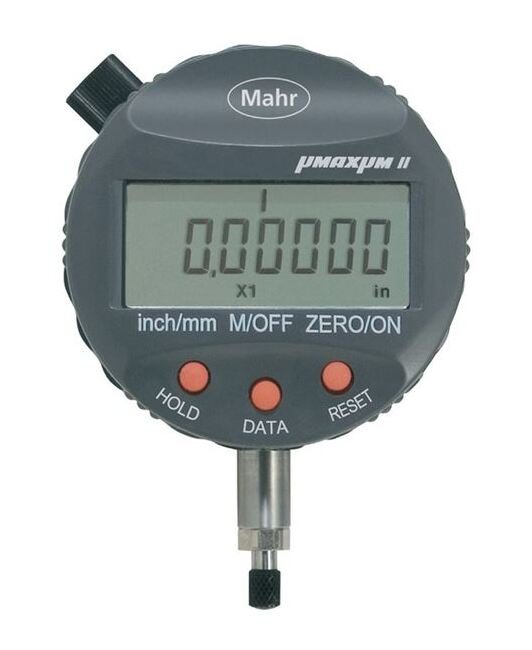

The Mahr µMaxµm II Advanced Model Digital Comparator is a cutting-edge solution tailored for industrial applications. Featuring a measuring range of ±0.040 in | 1 mm with exceptional resolution options ranging from 0.00001 in to 0.02 mm, this comparator ensures precise measurements for snap gages and fixed plug bore gages. With functions like ABS, MAX/MIN memory, and dynamic measurements, it guarantees accurate results. Additionally, it offers extended battery life, user-friendly setup, and data output compatibility to MarConnect interfaces, making it an indispensable tool for quality control processes in manufacturing environments.

Product Specifications

Additional Information Additional Information

All Î¼MaxÎ¼m II models include:User set up of all operational features2X longer battery lifeData output compatibility to MarConnect interfaces10 Âµin / 0.2 Âµm resolution selectableDynamic measurements, MIN, MAX, TIR, Hold

Functions Functions

On/offReset (set display to zero)mm/inReversal of counting directionABS (display can be set to zero without losing reference to preset)MAX/MIN memory for searching the reversal pointTIR (MAX/MIN) for testing flatness and concentricityFactor (adjustable)

Technical Specs Brands

Mahr

Technical Specs Measuring Range

0.040 in | 1 mm

Technical Specs Resolution

0.00001 in | 0.00002 in | 0.00005 in | 0.0001 in | 0.0002 in | 0.0005 in | 0.001 in | 0.0002 mm | 0.0005 mm | 0.001 mm | 0.002 mm | 0.005 mm | 0.01 mm | 0.02 mm
