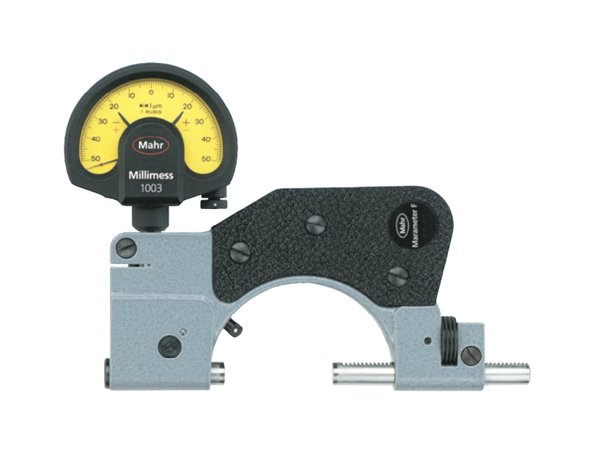

Mahr Indicating Snap Gage with Carbide-Tipped Measuring Faces

Name: Mahr Indicating Snap Gage with Carbide-Tipped Measuring Faces
Brand: Penn Tool Co.
SKU: SNA-4795c6
Price: 499.99 USD
Availability: OutOfStock

SKU:SNA-4795c6

Accurate and durable Mahr Snap Gage with carbide-tipped faces for precise measurements.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Mahr Indicating Snap Gage is designed for precise thickness and length measurements of cylindrical parts like shafts, bolts, and spindles. Its rugged forged steel frame with heat insulators ensures durability. The measuring spindle, made of hardened stainless steel with carbide-tipped or ceramic faces, guarantees accurate results. With a measuring force of 7.5 and exceptional repeatability of ≤0.5 µm, this snap gage offers reliability and precision. The built-in spring maintains a constant measuring force, eliminating user influence and ensuring accurate readings every time. It comes with a wooden case and steel flat contact points for added convenience.

Product Specifications

Additional Information Additional Information

Maximum wear resistance due to non-contact positioning in conjunction with carbide-tipped measuring faces.Constant measuring force as a result of built-in spring, thus eliminating user influence.Universally applicable and extremely versatile. Each instrument spans a broad measuring range, within this range any dimension and fit can be very quickly and easily adjusted.Supplied with: Wooden case, steel flat contact points 903

Technical Specs Brands

Mahr

Technical Specs Distance Of Moveable Anvil

2 mm

Technical Specs Measuring Force

7.5

Technical Specs Measuring Force Flatness

â¤0.2 Âµm

Technical Specs Measuring Force Parallelism

â¤1 Âµm

Technical Specs Repeatability

â¤0.5 Âµm

Mahr Indicating Snap Gage with Carbide-Tipped Measuring Faces
