Mahr Precision Snap Gage

Name: Mahr Precision Snap Gage
Brand: Penn Tool Co.
SKU: SNA-84cebb
Price: 899.99 USD
Availability: OutOfStock

SKU:SNA-84cebb

Accurate and durable, Mahr Precision Snap Gage ensures precise measurements for cylindrical parts. Ideal for shafts, bolts, and spindles.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

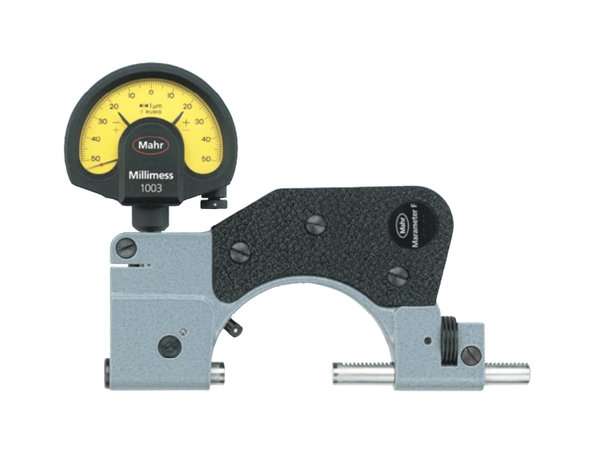

The Mahr Precision Snap Gage is a robust measurement tool designed for precise thickness and length measurements of cylindrical parts like shafts, bolts, and spindles. Crafted with a forged steel frame and heat insulators, it features a lever-controlled measuring spindle mounted in a long guide way for accurate readings. The carbide-tipped or ceramic measuring faces ensure durability and accuracy, while the adjustable center stop allows for automatic alignment. With exceptional repeatability, flatness, and parallelism, this snap gage offers maximum wear resistance and constant measuring force, making it a versatile and reliable instrument for various applications.

Product Specifications

Additional Information Additional Information

Maximum wear resistance due to non-contact positioning in conjunction with carbide-tipped measuring faces.Constant measuring force as a result of built-in spring, thus eliminating user influence.Universally applicable and extremely versatile. Each instrument spans a broad measuring range, within this range any dimension and fit can be very quickly and easily adjusted.Supplied with: Wooden case, steel flat contact points 903

Technical Specs Brands

Mahr

Technical Specs Distance Of Moveable Anvil

2 mm

Technical Specs Measuring Force Flatness

â¤0.2 Âµm

Technical Specs Measuring Force Parallelism

â¤2 Âµm

Technical Specs Repeatability

â¤0.5 Âµm

Mahr Precision Snap Gage
