Male Branch Tee Fitting, 1/4" x 1/4" NPT, SMBTI Series
Male Branch Tee Fitting, 1/4" x 1/4" NPT, SMBTI Series
SKU:SMB-ac82cd
Precision-engineered 1/4'' male tee fitting for secure fractional tube-to-NPT connections in high-pressure environments.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Male Branch Tee Fitting, 1/4" x 1/4" NPT, SMBTI Series
$24.99
Quantity: 1
Claim Your Seller Account
Male Branch Tee Fitting, 1/4" x 1/4" NPT, SMBTI Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

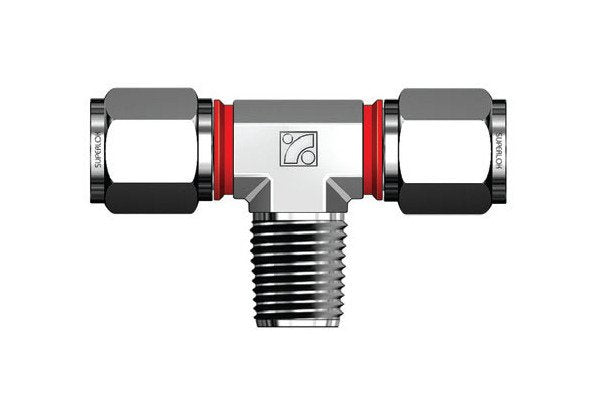

The SMBTI Series 1/4'' Tube OD Male Branch Tee Fitting is precision-engineered to connect fractional tubes to female NPT threads with unmatched reliability. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures superior performance in high-pressure and chemical environments. Its patented i-Fitting® design features a built-in gap gauge for perfect compression, enhancing installer safety, productivity, and cost-efficiency. With dimensions meeting industry standards, this fitting is a game-changer for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

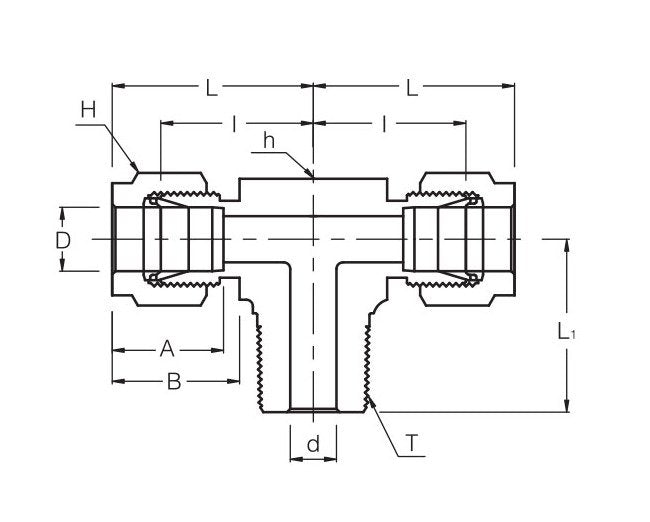

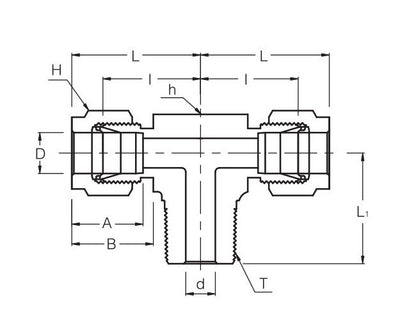

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
19.55 mm
Technical Specs Dimension L
26.92 mm
Technical Specs Dimension L1
23.36 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
