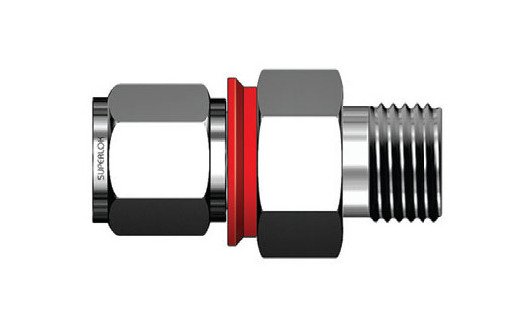

Male Connector Fitting - SSMCI Series 1/4in Tube OD
Male Connector Fitting - SSMCI Series 1/4in Tube OD
SKU:SSM-79186d
Enhance connections effortlessly with the SSMCI Male Connector Fitting. Patented design for safety & efficiency.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Male Connector Fitting - SSMCI Series 1/4in Tube OD
$34.99
Quantity: 1
Claim Your Seller Account
Male Connector Fitting - SSMCI Series 1/4in Tube OD
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSMCI Series Male Connector Fitting is engineered to connect fractional tubes to SAE/MS straight thread bosses efficiently. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this male connector fitting boasts a patented i-Fitting® design. With its built-in check ring for perfect compression, this fitting enhances installer safety in high-pressure environments, improves productivity, and minimizes costs. Meet your connection needs seamlessly with this industry-changing male connector fitting.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

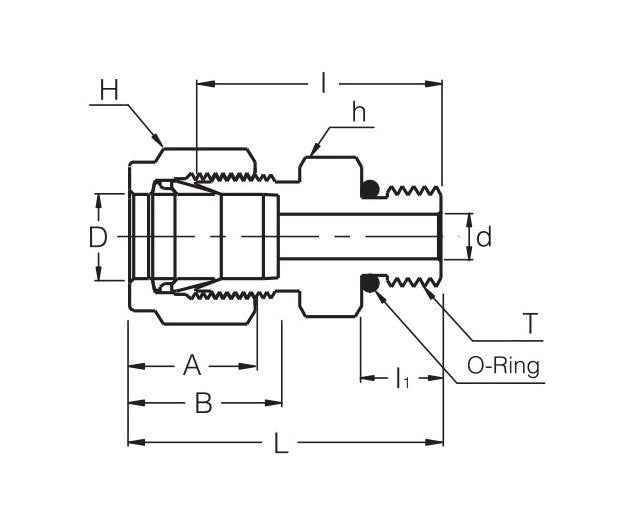

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
33.27 mm
Technical Specs Dimension I1
12.70 mm
Technical Specs Dimension L
40.64 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs O Ring Uniform Size Number
3-910
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Straight Thread T U
7/8-14 mm
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
