Male Elbow Connector 25mm Tube to 3/4" Thread, SMEI Series
Male Elbow Connector 25mm Tube to 3/4" Thread, SMEI Series
SKU:SME-33517e
Reliable male elbow connector for metric tubes, features i-Fitting® components for safe and efficient installations.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Male Elbow Connector 25mm Tube to 3/4" Thread, SMEI Series
$49.99
Quantity: 1
Claim Your Seller Account
Male Elbow Connector 25mm Tube to 3/4" Thread, SMEI Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

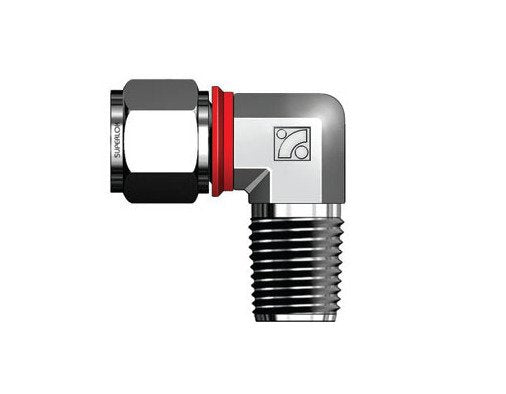

The SMEI Series Male Elbow Connector is designed to seamlessly join metric tubes to female ISO tapered threads, offering reliable and leak-free connections. Made from high-quality materials including Alloy 625, Alloy 825, Brass, and Stainless Steel, this connector ensures durability and compatibility with diverse applications. Featuring i-Fitting® components for precise installations, increased safety in high-pressure environments, and improved productivity, this patented design by BMT sets a new industry standard. Enhance efficiency and safety in valve connections with this innovative Male Elbow Connector.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

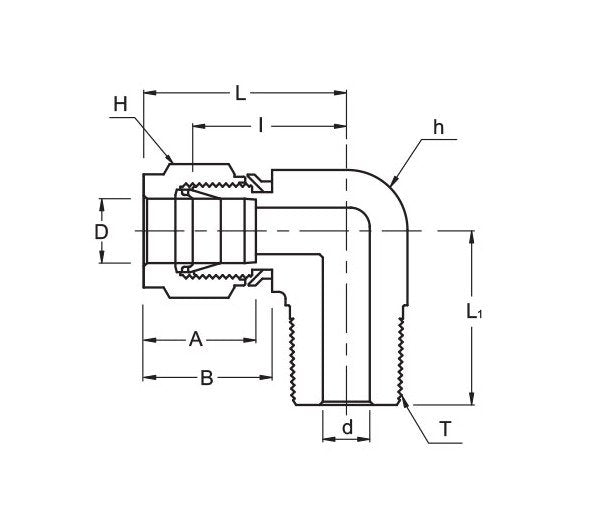

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
31.3 mm
Technical Specs Dimension B
26.5 mm
Technical Specs Dimension I
36.8 mm
Technical Specs Dimension L
49.1 mm
Technical Specs Dimension L1
41.7 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
3/4 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
25 mm
Technical Specs Width Across Flat H
38 mm
