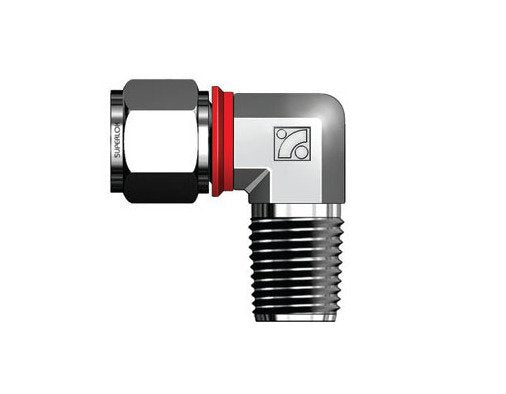

Male Elbow Connector 3/8" Tube OD x 3/4" NPT Thread
Male Elbow Connector 3/8" Tube OD x 3/4" NPT Thread
SKU:SME-f94bc6
Enhance safety & productivity with the SMEI Series Male Elbow Connector - perfect for high-pressure environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Male Elbow Connector 3/8" Tube OD x 3/4" NPT Thread
$29.99
Quantity: 1
Claim Your Seller Account
Male Elbow Connector 3/8" Tube OD x 3/4" NPT Thread
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMEI Series Male Elbow Connector is designed to seamlessly connect fractional tubes with female NPT threads. Made from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, it ensures durability and reliability in various applications. The unique i-Fitting® design enhances safety by preventing over-tightening, improving productivity, and reducing costs. Ideal for high-pressure and chemical environments, this industry-changing connector offers precision, safety, and efficiency.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

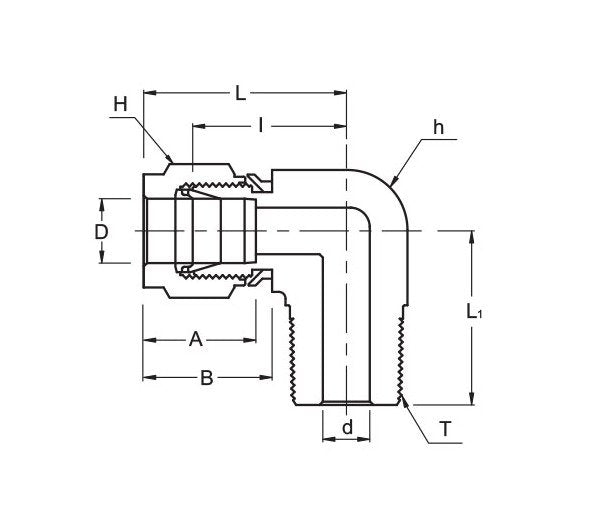

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
29.71 mm
Technical Specs Dimension L
37.08 mm
Technical Specs Dimension L1
36.83 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
3/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
