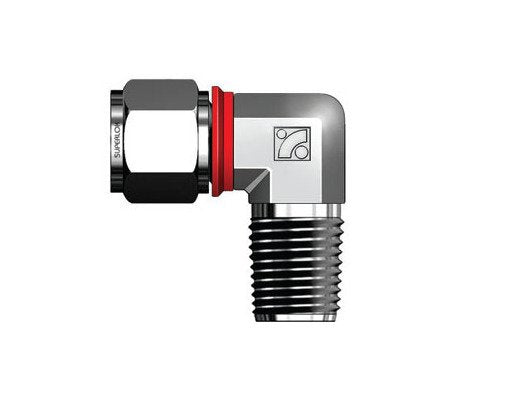

Male Elbow Connector - 8mm Tube OD, 1/2 Inch Thread Size
Male Elbow Connector - 8mm Tube OD, 1/2 Inch Thread Size
SKU:SME-18a16b
Securely connect metric tubes to female ISO tapered threads with precision and safety using our male elbow connector.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Male Elbow Connector - 8mm Tube OD, 1/2 Inch Thread Size
$29.99
Quantity: 1
Claim Your Seller Account
Male Elbow Connector - 8mm Tube OD, 1/2 Inch Thread Size
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMEI Series Male Elbow Connector is expertly designed to seamlessly connect metric tubes to female ISO tapered threads. Made from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this male elbow boasts a range of dimensions from 6 to 25mm, ensuring a secure and reliable connection. Featuring i-Fitting® components, it enhances safety in high-pressure environments, eliminates over- or under-tightening issues, and boosts productivity with its patented design by BMT. Ideal for valve connections, this male elbow is a game-changer in fluid systems.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

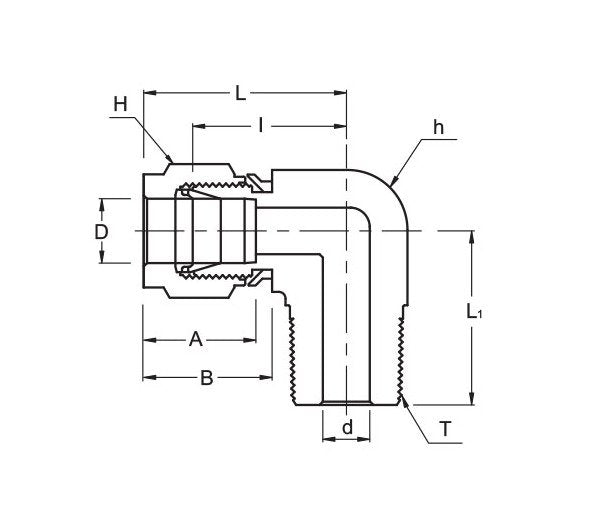

Technical Specs Connection Type
Female
Technical Specs Dimension A
16.2 mm
Technical Specs Dimension B
18.6 mm
Technical Specs Dimension I
25.1 mm
Technical Specs Dimension L
32.6 mm
Technical Specs Dimension L1
33.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
6.4 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
8 mm
Technical Specs Width Across Flat H
16 mm
