Male Elbow Fitting 8mm Tube OD, 3/8in Thread
Male Elbow Fitting 8mm Tube OD, 3/8in Thread
SKU:SME-710269
Precision-engineered Male Elbow connecting 8mm tubes to 3/8in threads, with i-Fitting® components for safety & efficiency.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Male Elbow Fitting 8mm Tube OD, 3/8in Thread
$24.99
Quantity: 1
Claim Your Seller Account
Male Elbow Fitting 8mm Tube OD, 3/8in Thread
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

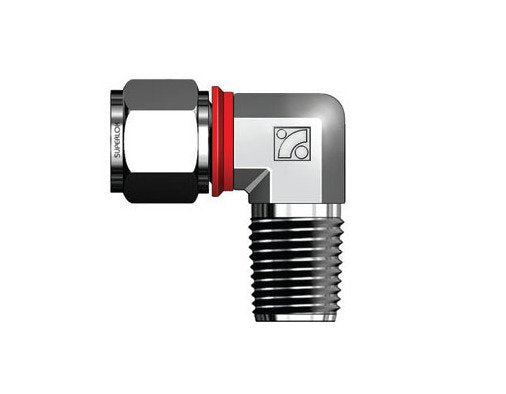

The SMEI Series Male Elbow is a precision-engineered connector designed to seamlessly join metric tubes to female ISO tapered threads. With dimensions meeting industry standards and a material composition including Alloy 625, Stainless Steel, and more, this male elbow ensures reliable and leak-free connections. Its patented i-Fitting® components enhance safety, efficiency, and cost-effectiveness, making it ideal for high-pressure and hazardous environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

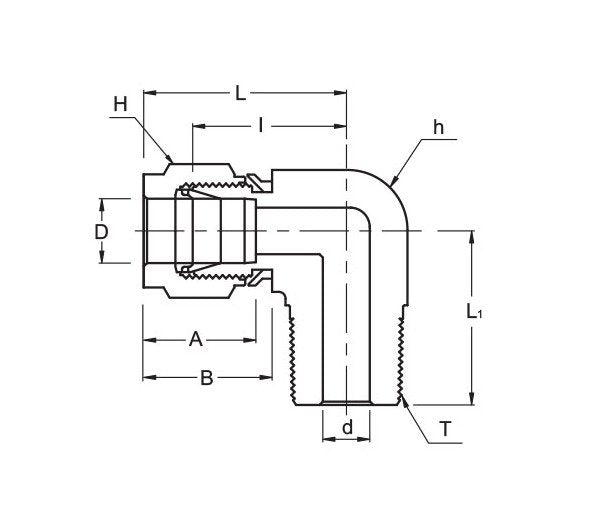

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
16.2 mm
Technical Specs Dimension B
18.6 mm
Technical Specs Dimension I
23.1 mm
Technical Specs Dimension L
30.6 mm
Technical Specs Dimension L1
26.2 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
6.4 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
3/8 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
8 mm
Technical Specs Width Across Flat H
16 mm
