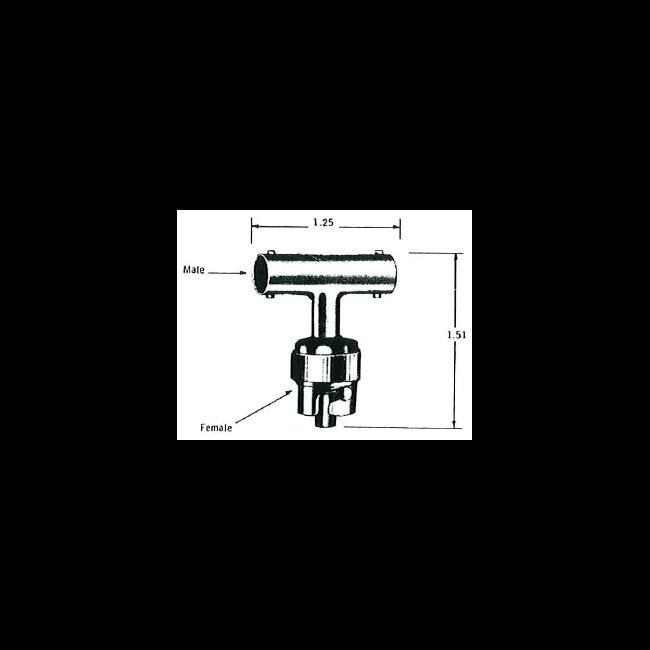

Male Female T-Adaptor for 6.5 and 15 kVDC - Series 31, 310 and 311 Coaxial Connectors
Male Female T-Adaptor for 6.5 and 15 kVDC - Series 31, 310 and 311 Coaxial Connectors
SKU:HIG-c237cc
Reliable Male Female T-Adaptor for Series 31, 310 and 311 Coaxial Connectors. Sea Level rated with Bayonet-style coupling and Brass coupling nut. Ideal for high voltage applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Male Female T-Adaptor for 6.5 and 15 kVDC - Series 31, 310 and 311 Coaxial Connectors
$49.99
Quantity: 1
Claim Your Seller Account
Male Female T-Adaptor for 6.5 and 15 kVDC - Series 31, 310 and 311 Coaxial Connectors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Female T-Adaptor, part of the Series 31 high voltage connectors line, offers reliable performance dating back to 1950. With a Sea Level altitude rating, this non-standard part features a Bayonet-style coupling, Brass coupling nut with Gold Plating, and Beryllium Copper contacts. Operating from -40 to 85 °C with a 10 Amp current rating and 7.5 kVDC test voltage, it mates seamlessly with all Series 311 Cond. 1 receptacles and adaptors. This T-Adaptor ensures secure connections in high voltage applications.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Material
Beryllium Copper
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
"T" Adapter
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 Amp
Specifications Export Classification
TBD
Specifications Mating Compatibility
Mates all Series 311 Cond. 1 receptacles and adaptors.
Specifications Operating Temperature
-40 to 85 ºC
Specifications Polarization
Cond. 1
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
No
Specifications Series
31
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
7.5 kVDC for 15 sec.
Specifications Voltage Rating
6.5 kVDC
