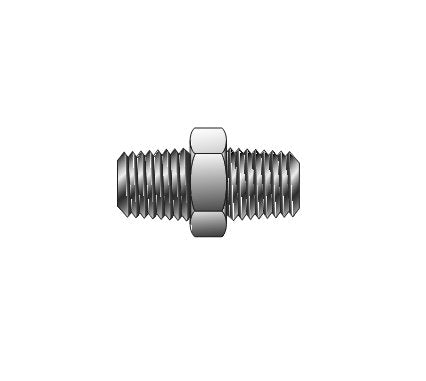

Male Hex Nipple NPT to BSP Taper Fitting - Parker ISO Conversion
Male Hex Nipple NPT to BSP Taper Fitting - Parker ISO Conversion
SKU:FIT-6effc6
Enhance connections with Parker Male Hex Nipple NPT to BSP Taper Fitting for secure, high-pressure joints.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Male Hex Nipple NPT to BSP Taper Fitting - Parker ISO Conversion
$25.99
Quantity: 1
Claim Your Seller Account
Male Hex Nipple NPT to BSP Taper Fitting - Parker ISO Conversion
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid system connections with the Parker ISO Conversion Fitting, expertly designed to bridge the gap between NPT and BSP threads. This high-quality fitting ensures secure, leak-free joints with working pressures up to 6400 psi in stainless steel and brass materials. Engineered to the exacting standards of Parker, these fittings guarantee compatibility and reliability in critical applications, making them ideal for industries requiring precision and durability.
Product Specifications

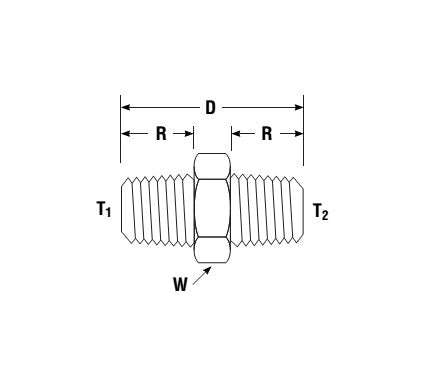

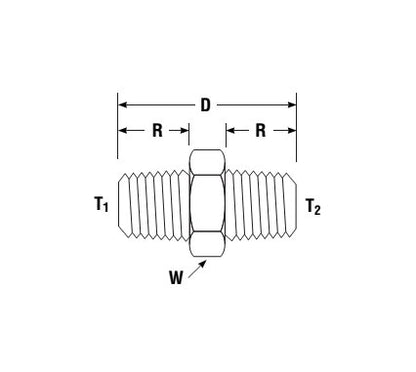

Dimensions Bspt Thread T2
3/4-14
Dimensions Connection Type
MNPT to BSPT
Dimensions D
1.97 in
Dimensions Npt Thread T1
3/4-14
Dimensions R
.75 in
Dimensions Working Pressure Brass
3800 psi | 260 bar
Dimensions Working Pressure Stainless Steel
6400 psi | 440 bar
Dimensions W Hex
1 1/8 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
