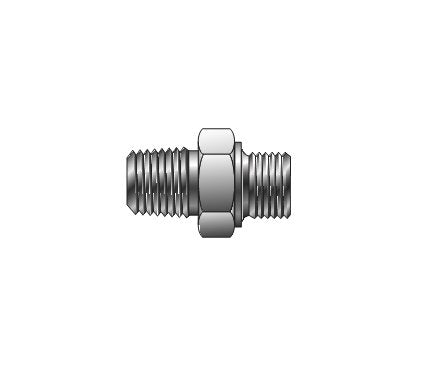

Male Hex Nipple NPT to BSPP Fitting Connection
Male Hex Nipple NPT to BSPP Fitting Connection
SKU:FIT-63f6fd
High-quality Male Hex Nipple NPT to BSPP fitting for seamless NPT and ISO thread connections, with exceptional working pressure and precision engineering.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Male Hex Nipple NPT to BSPP Fitting Connection
$35.99
Quantity: 1
Claim Your Seller Account
Male Hex Nipple NPT to BSPP Fitting Connection
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Hex Nipple NPT to BSPP fitting by Parker offers top-tier quality constructed to facilitate seamless connections between components utilizing NPT and ISO thread configurations. These conversion fittings adhere to stringent quality control measures, ensuring durability and reliability. Ideal for linking female NPT and female BSPP threaded components, this fitting features a bonded seal essential for the BSPP end. With high working pressures up to 6600 psi in stainless steel and 3800 psi in brass, it assures robust performance in diverse industrial applications.
Product Specifications

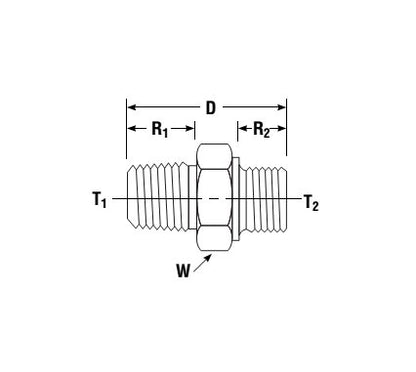

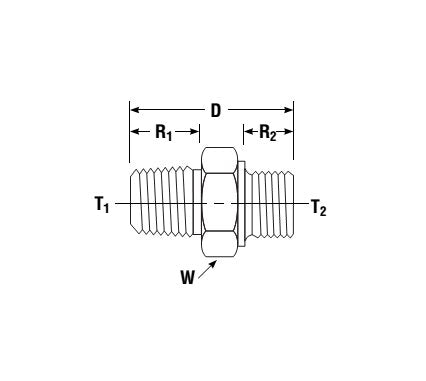

Dimensions Bspp Thread T2
1/2-14
Dimensions Connection Type
NPT x BSPP
Dimensions D
1.78 in
Dimensions Npt Thread T1
1/2-14
Dimensions R1
.75 in
Dimensions R2
.56 in
Dimensions Working Pressure Brass
3800 psi | 260 bar
Dimensions Working Pressure Stainless Steel
6600 psi | 460 bar
Dimensions W Hex
1 1/16 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
