Male Hex Nipple NPT to BSPP Fitting Converter
Male Hex Nipple NPT to BSPP Fitting Converter
SKU:FIT-77c6c6
Engineered for precision connections between NPT and BSPP threads, this durable converter by Parker ensures tight joints and superior performance in industrial applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Male Hex Nipple NPT to BSPP Fitting Converter
$39.99
Quantity: 1
Claim Your Seller Account
Male Hex Nipple NPT to BSPP Fitting Converter
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

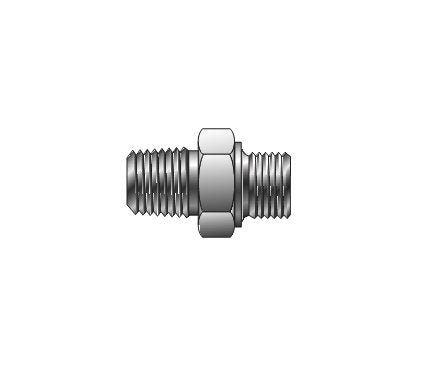

The Male Hex Nipple NPT to BSPP Fitting Converter by Parker is meticulously engineered to facilitate seamless connections between NPT and ISO Thread configurations, ensuring airtight joints and optimal system performance. Crafted from high-grade stainless steel or brass, this conversion fitting boasts exceptional durability and pressure resistance. With a working pressure of up to 7200 psi, this converter is ideal for industrial applications where precision and reliability are paramount. The tapered threaded ends guarantee secure fittings, with a bonded seal for the BSPP end included for added protection. Upgrade your piping systems with this top-tier ISO conversion fitting that meets rigorous quality and design standards.
Product Specifications

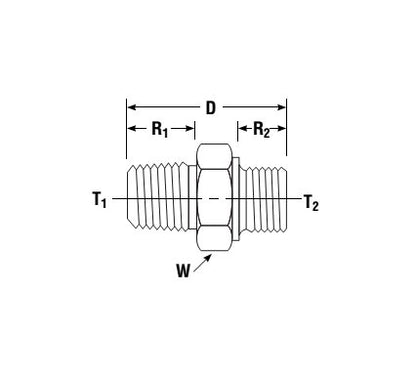

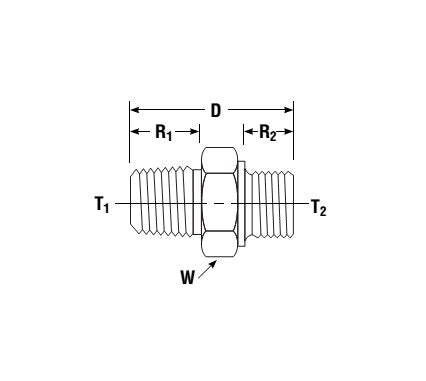

Dimensions Bspp Thread T2
3/8-19
Dimensions Connection Type
NPT x BSPP
Dimensions D
1.47 in
Dimensions Npt Thread T1
3/8-18
Dimensions R1
.56 in
Dimensions R2
.44 in
Dimensions Working Pressure Brass
3900 psi | 270 bar
Dimensions Working Pressure Stainless Steel
7200 psi | 500 bar
Dimensions W Hex
7/8 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
