Male Pipe Weld Connector Fitting - 1/4" Tube OD, 1/4mm Male Pipe Size
Male Pipe Weld Connector Fitting - 1/4" Tube OD, 1/4mm Male Pipe Size
SKU:SPW-c9ee21
Efficiently connect tubes to pipes with the durable SPWCI Series Male Pipe Weld Connector, featuring innovative i-Fitting® design for safety & productivity.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Male Pipe Weld Connector Fitting - 1/4" Tube OD, 1/4mm Male Pipe Size
$24.99
Quantity: 1
Claim Your Seller Account
Male Pipe Weld Connector Fitting - 1/4" Tube OD, 1/4mm Male Pipe Size
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

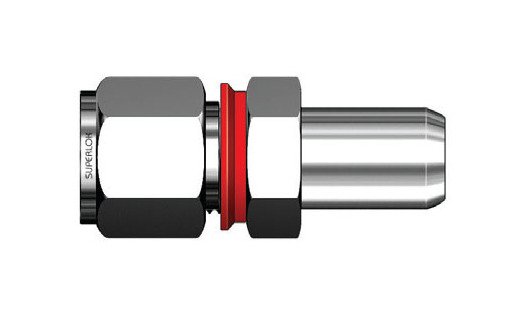

The SPWCI Series Male Pipe Weld Connector Fitting is designed to seamlessly connect fractional tubes to pipes. Made from high-quality materials like Alloy 625, Alloy 825, and stainless steel, this fitting ensures durability and reliability. Its innovative i-Fitting® design, including a check ring for perfect compression, enhances safety and efficiency in high-pressure environments. With dimensions meeting industry standards and a patented design, this fitting is ideal for valve connections in various applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

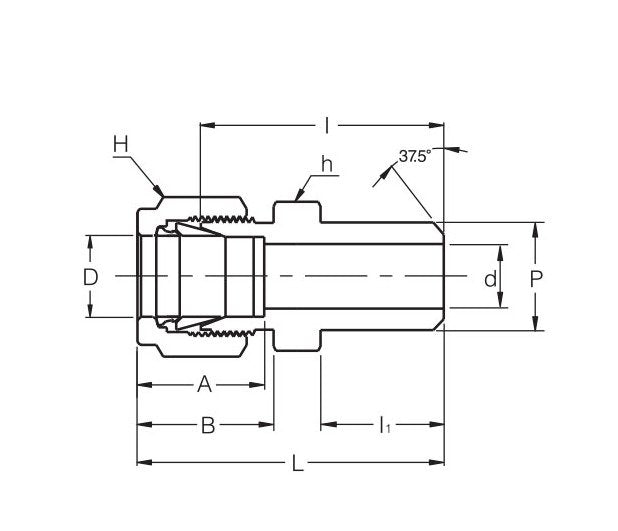

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
30.48 mm
Technical Specs Dimension I1
14.22 mm
Technical Specs Dimension L
37.84 mm
Technical Specs Male Pipe Outside Diameter
13.70 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Nominal Male Pipe Size P
1/4 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
