Male Stud Check Valve with Elastomer Seal Thread BSP Parallel

Name: Male Stud Check Valve with Elastomer Seal Thread BSP Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-f33be0
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-f33be0

Durable Male Stud Check Valve with Elastomer Seal, ideal for light-duty hydraulic applications. Nominal pressure of 250 bar.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Male Stud Check Valve with Elastomer Seal and B3 Ring is a durable hydraulic component designed for light-duty applications, offering a nominal operating pressure of 250 bar. Crafted from high-grade stainless steel, this valve ensures reliable performance and longevity. With a tube diameter of 6.0 mm and G-Thread Size of 1/8, it provides precise control and efficient flow regulation, making it ideal for hydraulic systems in various industries.

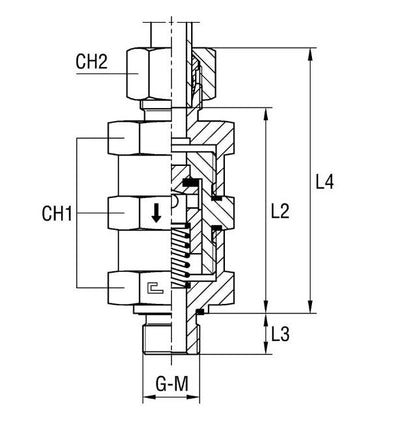

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

14 mm

Specifications Diameter Pass

4 mm

Specifications G Thread Size

1/8

Specifications L2

53 mm

Specifications L3

8.0 mm

Specifications L4

67.5 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

6.0 mm

Male Stud Check Valve with Elastomer Seal Thread BSP Parallel
