Male Stud Coupling BSP Parallel - Carbon Steel, DIN 2353 Compliant
Male Stud Coupling BSP Parallel - Carbon Steel, DIN 2353 Compliant
SKU:FIT-f24004
High-quality Male Stud Coupling BSP Parallel for hydraulic systems. Nominal Pressure: 315 bar.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Male Stud Coupling BSP Parallel - Carbon Steel, DIN 2353 Compliant
$25.99
Quantity: 1
Claim Your Seller Account
Male Stud Coupling BSP Parallel - Carbon Steel, DIN 2353 Compliant
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Coupling BSP Parallel - Equipped B3 Ring is designed for light-duty applications with a nominal operating pressure of 315 bar. Made of durable carbon steel, this fitting features a 6.0mm tube diameter and meets DIN 2353 standards. With precise dimensions including G-Thread Size of 1/4 and CH1 measurement of 19.0mm, it ensures reliable performance and easy installation for various hydraulic systems.
Ready to Grow Without Cash Flow Constraints?

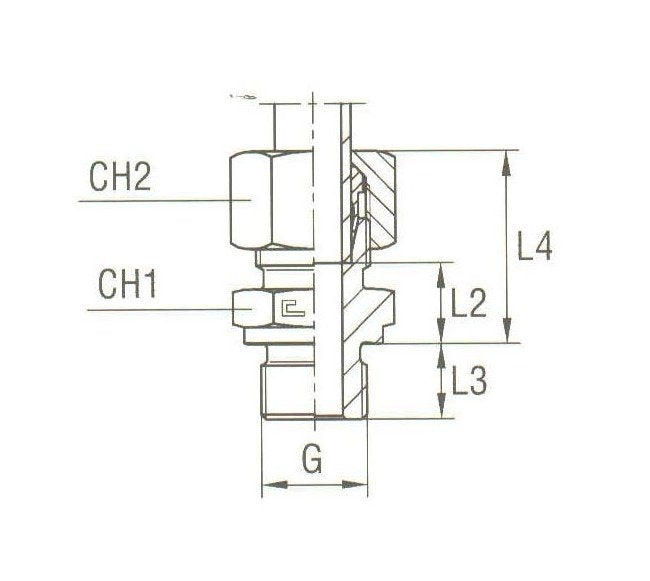

Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
14 mm
Specifications G Thread Size
1/4
Specifications L2
10.0 mm
Specifications L3
12.0 mm
Specifications L4
24.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
Category 6
Male Stud Coupling Thread BSP Parallel
