Male Stud Coupling BSP Parallel - DIN 2353 Compression Fitting
Male Stud Coupling BSP Parallel - DIN 2353 Compression Fitting
SKU:FIT-206e69
Durable Male Stud Coupling BSP Parallel for 160 bar pressure. DIN 2353 compliant with Viton seal for secure sealing.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Male Stud Coupling BSP Parallel - DIN 2353 Compression Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Male Stud Coupling BSP Parallel - DIN 2353 Compression Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Coupling BSP Parallel - Equipped B4 Ring is a light-duty fitting designed for nominal operating pressures up to 160 bar. Constructed from durable carbon steel, it features a 22mm tube diameter, G-Thread Size of 1, and elastomeric Viton seal for reliable sealing. This fitting complies with DIN 2353 standards, ensuring high-quality performance and compatibility.
Ready to Grow Without Cash Flow Constraints?

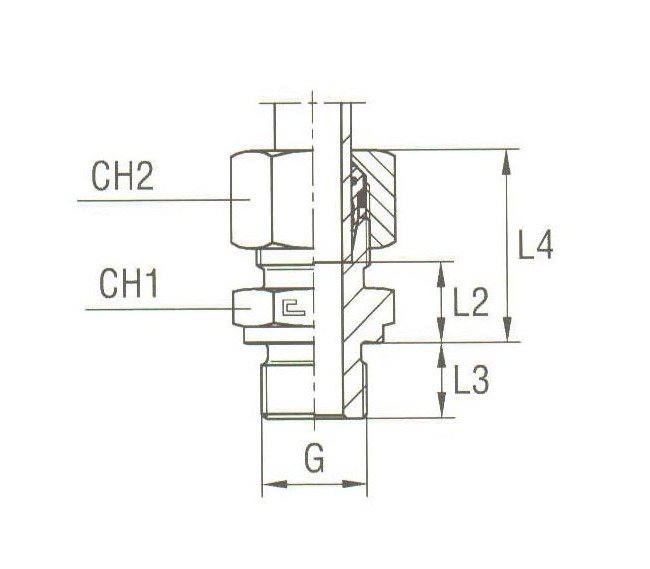

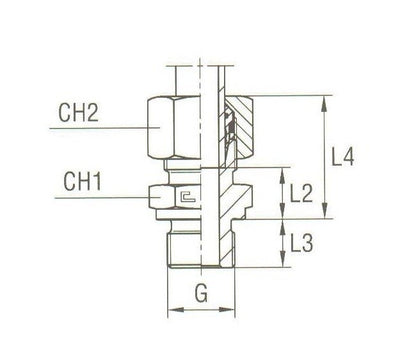

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
36 mm
Specifications G Thread Size
1
Specifications L2
17.5 mm
Specifications L3
18.0 mm
Specifications L4
34 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Sealing
Elastometric Viton Seal
Specifications Standards
DIN 2353
Specifications Tube Diameter
22 mm
Category 6
Male Stud Coupling Thread BSP Parallel
