Male Stud Coupling BSP Parallel - Equipped B3 Ring
Male Stud Coupling BSP Parallel - Equipped B3 Ring
SKU:FIT-df6d7c
Durable Male Stud Coupling BSP Parallel for light-duty applications, meeting DIN 2353 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Male Stud Coupling BSP Parallel - Equipped B3 Ring
$24.99
Quantity: 1
Claim Your Seller Account
Male Stud Coupling BSP Parallel - Equipped B3 Ring
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Coupling BSP Parallel with Equipped B3 Ring is designed for light-duty applications with a nominal operating pressure of 315 bar. Crafted from durable carbon steel, this fitting ensures reliable performance. With precise measurements including a tube diameter of 10.0 mm and CH1 of 22 mm, it meets DIN 2353 standards, making it a dependable choice for various industrial settings.
Ready to Grow Without Cash Flow Constraints?

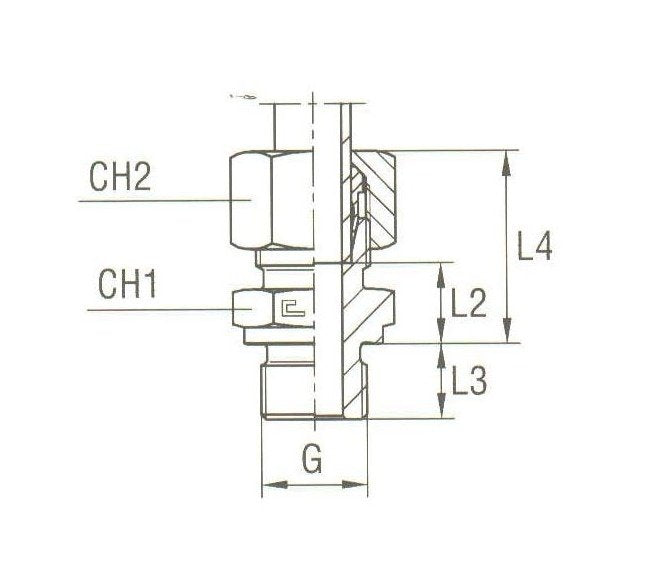

Product Specifications
Specifications Ch1
22 mm
Specifications Ch2
19.0 mm
Specifications G Thread Size
3/8
Specifications L2
12.5 mm
Specifications L3
12.0 mm
Specifications L4
27.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
Category 6
Male Stud Coupling Thread BSP Parallel
