Male Stud Coupling BSP Parallel - Heavy Duty Carbon Steel
Male Stud Coupling BSP Parallel - Heavy Duty Carbon Steel
SKU:FIT-05a434
Male Stud Coupling BSP Parallel for heavy-duty applications. Carbon steel construction. DIN 2353 compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Male Stud Coupling BSP Parallel - Heavy Duty Carbon Steel
$24.99
Quantity: 1
Claim Your Seller Account
Male Stud Coupling BSP Parallel - Heavy Duty Carbon Steel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Coupling BSP Parallel - Equipped B3 Ring is designed for heavy-duty applications with a nominal operating pressure of 630 bar. Constructed from carbon steel, it ensures durability and reliability. This fitting features a tube diameter of 10.0 mm, G-Thread size of 1/4, and meets DIN 2353 standards. With precise dimensions and optimal CH1 and CH2 measurements, it offers secure and leak-free connections in hydraulic systems.
Ready to Grow Without Cash Flow Constraints?

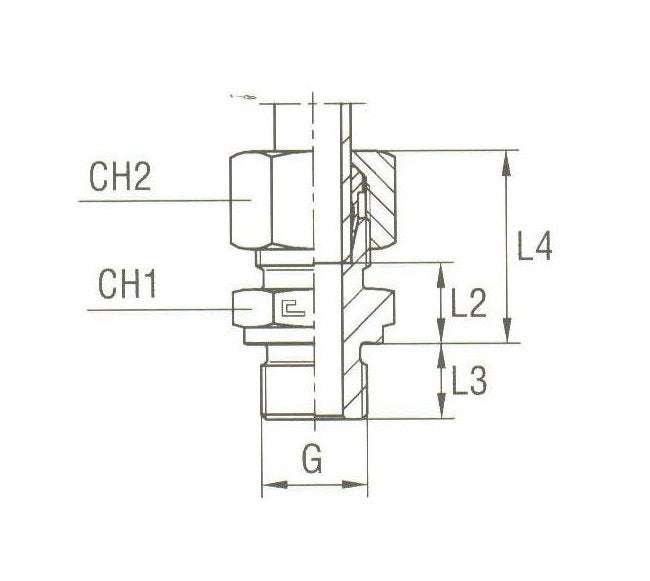

Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
22 mm
Specifications G Thread Size
1/4
Specifications L2
14.5 mm
Specifications L3
12.0 mm
Specifications L4
30.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
Category 6
Male Stud Coupling Thread BSP Parallel
