Male Stud Coupling BSP Parallel with O-Ring - DIN 2353 Compression Fitting

Name: Male Stud Coupling BSP Parallel with O-Ring - DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-36a099
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-36a099

Durable Male Stud Coupling BSP Parallel for 160 bar pressure w/ Viton seal. DIN 2353 compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Male Stud Coupling BSP Parallel is a high-quality fitting designed for light-duty applications with a nominal operating pressure of 160 bar. Constructed from durable carbon steel, this coupling features a 28mm tube diameter and comes equipped with an elastomeric Viton seal for secure connections. Compliant with DIN 2353 standards, it ensures reliable performance and a tight seal every time.

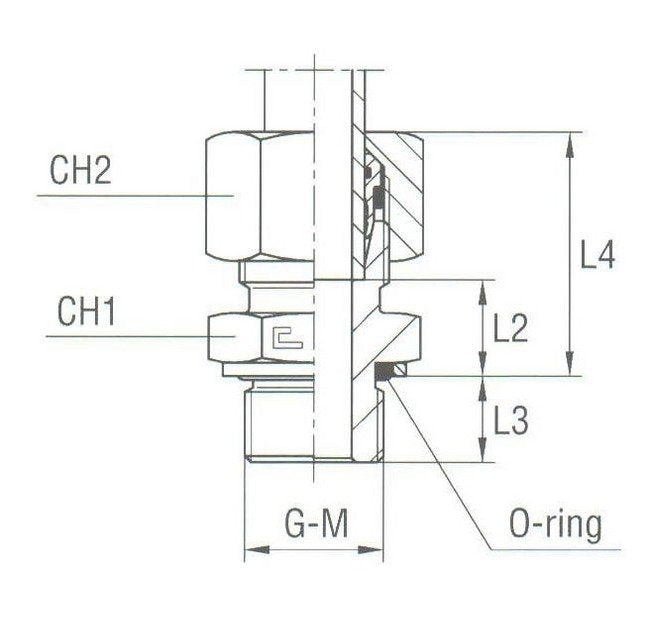

Product Specifications

Specifications Ch1

41 mm

Specifications Ch2

41 mm

Specifications G Thread Size

Specifications L2

17.6 mm

Specifications L3

15.4 mm

Specifications L4

34.1 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Sealing

Elastometric Viton Seal

Specifications Standards

DIN 2353

Specifications Tube Diameter

28 mm
