Male Stud Coupling Metric Parallel - Equipped B3 Ring

Name: Male Stud Coupling Metric Parallel - Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-d72fa1
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-d72fa1

Durable Male Stud Coupling Metric Parallel for secure hydraulic connections. DIN 2353 compliant, perfect for light-duty applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

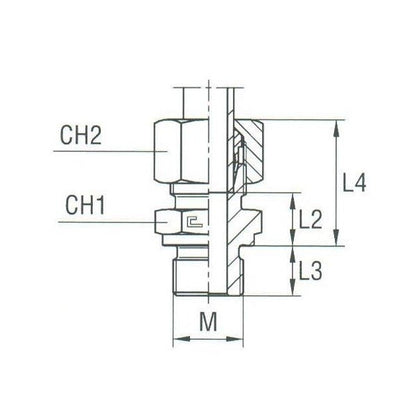

The Male Stud Coupling Metric Parallel with Equipped B3 Ring is crafted from durable Carbon Steel, ensuring reliable performance under light-duty applications. With a tube diameter of 6.0mm and a nominal operating pressure of 315 bar, this fitting guarantees secure connections. Meeting DIN 2353 standards, it features precise dimensions including M-thread size 10x1 and CH1/CH2 dimensions of 14mm. Ideal for hydraulic systems, this coupling offers robust functionality and long-lasting quality.

Product Specifications

Specifications Ch1

14 mm

Specifications Ch2

14 mm

Specifications L2

8.5 mm

Specifications L3

8.0 mm

Specifications L4

23 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

10x1

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

6.0 mm

Category 6

Male Stud Coupling Thread Metric Parallel

Male Stud Coupling Metric Parallel - Equipped B3 Ring
