Male Stud Coupling - Stainless Steel Thread UNF/UN-2A - DIN 2353 Compression Fitting
Male Stud Coupling - Stainless Steel Thread UNF/UN-2A - DIN 2353 Compression Fitting
SKU:FIT-d43234
Stainless steel Male Stud Coupling for light duty applications, DIN 2353 compliant
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Male Stud Coupling - Stainless Steel Thread UNF/UN-2A - DIN 2353 Compression Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Male Stud Coupling - Stainless Steel Thread UNF/UN-2A - DIN 2353 Compression Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

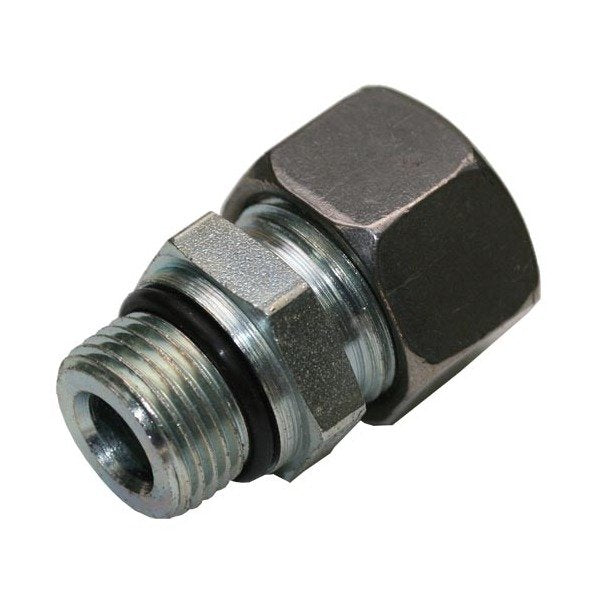

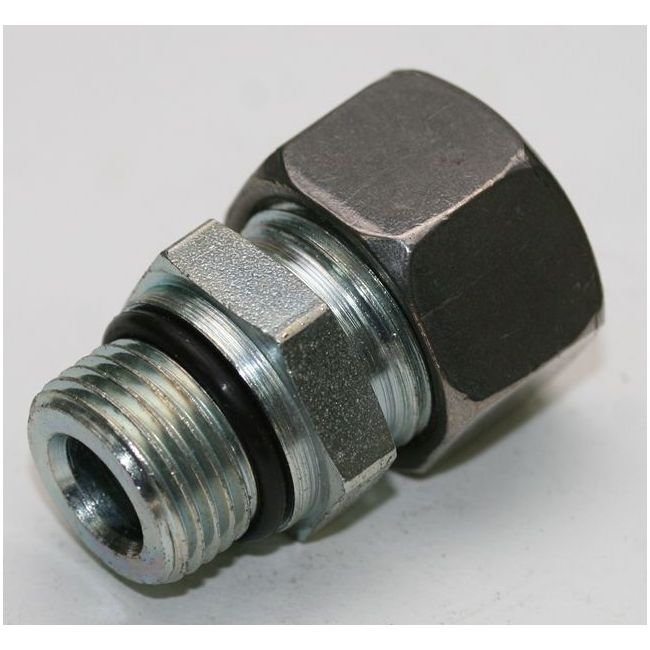

The Male Stud Coupling features a durable stainless steel construction, suitable for light duty applications. With a tube diameter of 18.0 mm and a pressure rating of 315 bar, this coupling ensures reliable performance. Compliant with DIN 2353 standards, it offers precise fittings for secure connections, making it ideal for industrial use.

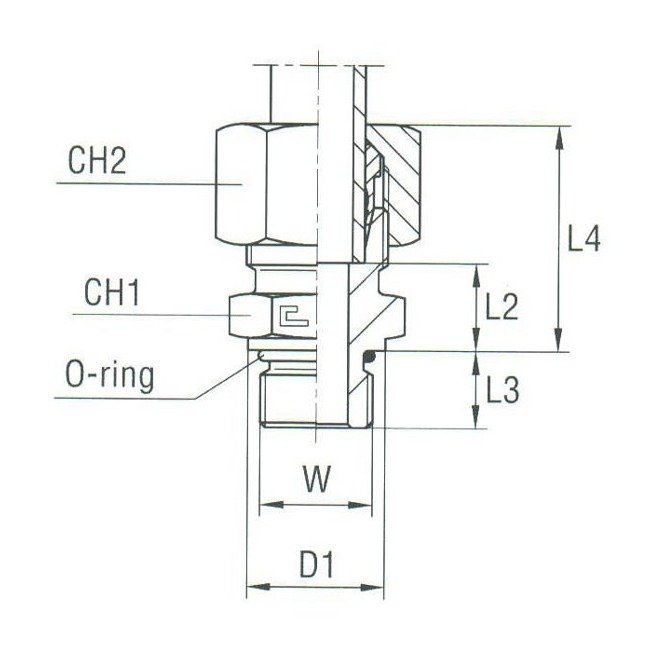

Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
32 mm
Specifications D1
21.8 mm
Specifications L2
14.4 mm
Specifications L3
11.1 mm
Specifications L4
31 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
18.0 mm
Specifications W Thread Size
3/4-16
