Male Stud Coupling UNF/UN-2A - Carbon Steel Body

Name: Male Stud Coupling UNF/UN-2A - Carbon Steel Body
Brand: World Wide Metric, Inc.
SKU: FIT-d30a20
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-d30a20

Heavy-duty Male Stud Coupling in carbon steel, DIN 2353 compliant, for high-pressure applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

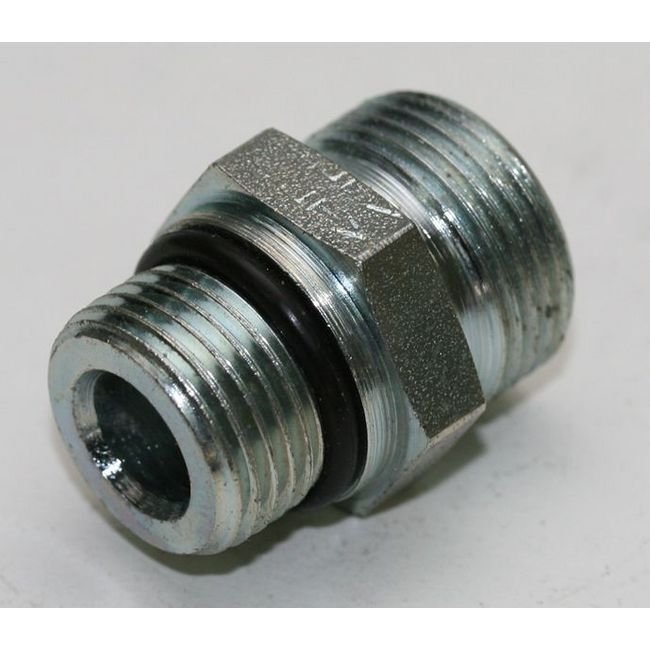

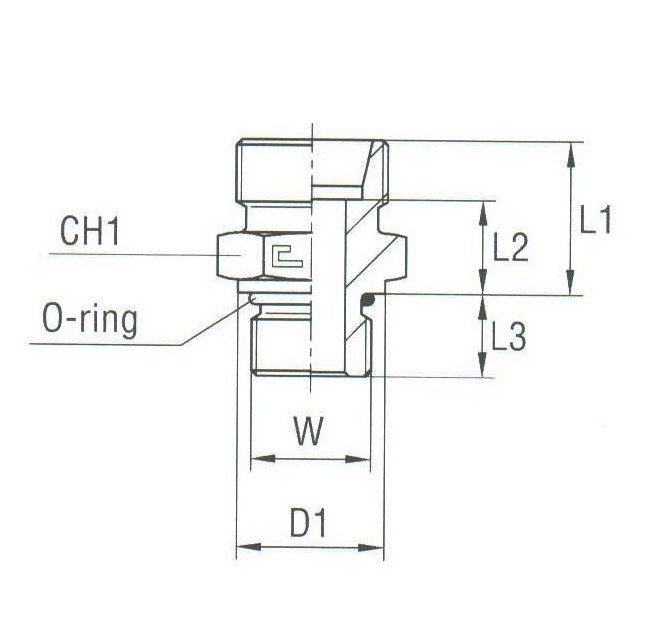

The Male Stud Coupling with O-Ring Thread UNF/UN-2A - Body Only is a heavy-duty fitting designed for industrial applications. Constructed from durable carbon steel, this coupling ensures reliable performance under high pressure (400 bar). With a tube diameter of 25.0 mm and precise thread sizing (1 1/16-12), it meets DIN 2353 standards for superior quality and compatibility. Its compact design, with dimensions L1: 34.9 mm, L2: 22.9 mm, L3: 15.1 mm, CH1: 36 mm, and D1: 31.8 mm, makes installation easy and efficient, ideal for straight connections in hydraulic systems.

Product Specifications

Specifications Ch1

36 mm

Specifications D1

31.8 mm

Specifications L1

34.9 mm

Specifications L2

22.9 mm

Specifications L3

15.1 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

25.0 mm

Specifications W Thread Size

1 1/16-12
