Male Stud Coupling with Elastomer Seal - DIN 2353 Compression Fitting

Name: Male Stud Coupling with Elastomer Seal - DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-3bb589
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-3bb589

Durable Male Stud Coupling with Elastomer Seal for secure, leak-proof connections. DIN 2353 compliant, ideal for light-duty applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

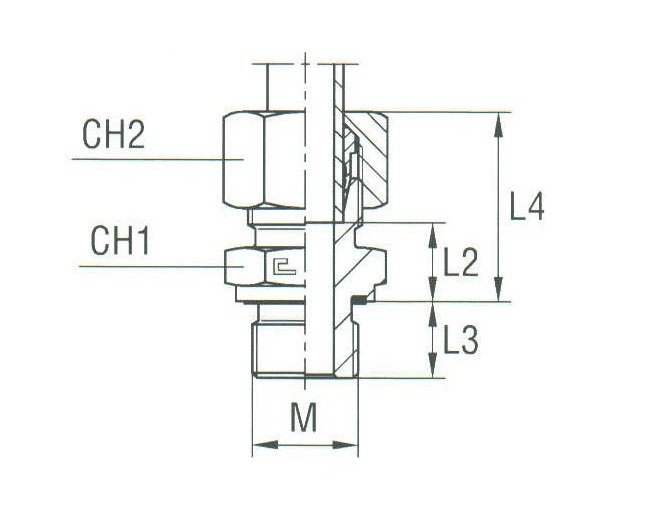

The Male Stud Coupling with Elastomer Seal Thread Metric Parallel - Equipped B3 Ring is crafted from durable Carbon Steel, ensuring reliable performance in light-duty applications. With a tube diameter of 8.0mm and a maximum pressure capacity of 315 bar, this fitting guarantees secure connections with precise thread size 18x1.5. Meeting DIN 2353 standards, it features optimal dimensions (L2: 11.5mm, L3: 12.0mm, L4: 26.5mm) and CH1: 24mm, CH2: 17.0mm for seamless integration. Benefit from its quality construction and perfect seal for efficient fluid handling.

Product Specifications

Specifications Ch1

24 mm

Specifications Ch2

17.0 mm

Specifications L2

11.5 mm

Specifications L3

12.0 mm

Specifications L4

26.5 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

18x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel

Male Stud Coupling with Elastomer Seal - DIN 2353 Compression Fitting
