Male Stud Coupling with Elastomer Seal - Metric Parallel (Body Only)

Name: Male Stud Coupling with Elastomer Seal - Metric Parallel (Body Only)
Brand: World Wide Metric, Inc.
SKU: FIT-e4c697
Price: 22.99 USD
Availability: OutOfStock

SKU:FIT-e4c697

Durable Male Stud Coupling for hydraulic systems, meets DIN 2353 standards, 22mm tube diameter, 160 bar pressure rating.

$22.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

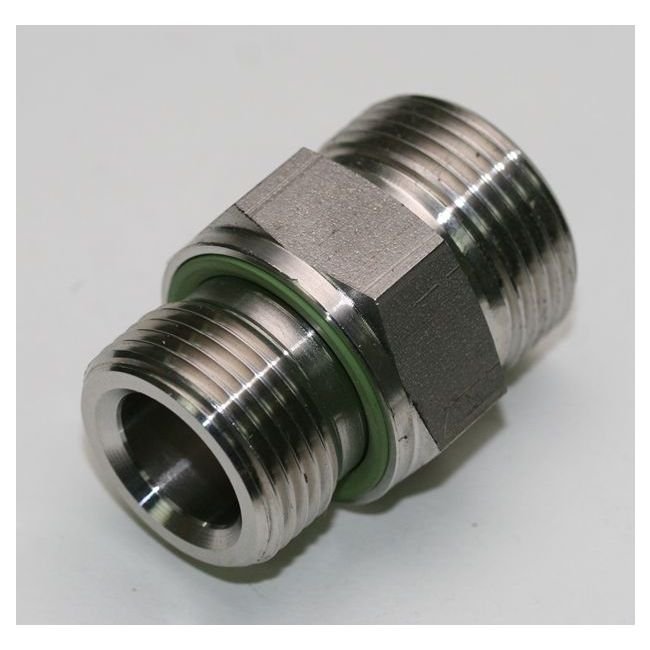

The Male Stud Coupling with Elastomer Seal is designed for light duty applications, constructed with high-quality carbon steel to ensure durability. With a tube diameter of 22mm and a 22x1.5 M-thread size, it can withstand a nominal operating pressure of 160 bar. This coupling meets DIN 2353 standards, providing reliable performance and leak-free connections for various hydraulic systems.

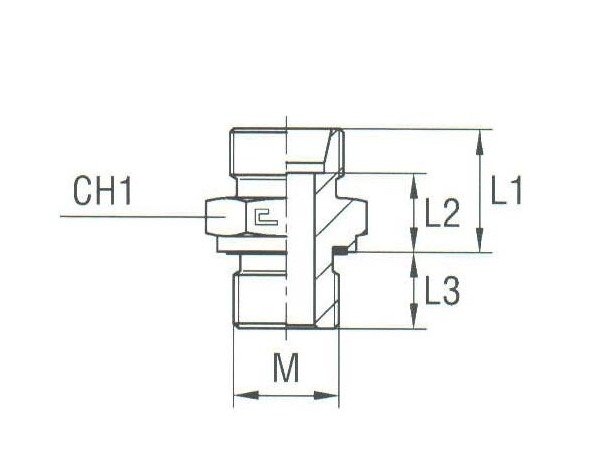

Product Specifications

Specifications Ch1

32 mm

Specifications L1

24.0 mm

Specifications L2

16.5 mm

Specifications L3

14.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

22 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel
