Male Stud Coupling with O-Ring and Washer - BSP Parallel (Body Only) - Carbon Steel

Name: Male Stud Coupling with O-Ring and Washer - BSP Parallel (Body Only) - Carbon Steel
Brand: World Wide Metric, Inc.
SKU: FIT-7ebae0
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-7ebae0

High-quality Male Stud Coupling with O-Ring and Washer for extra light duty applications. Carbon steel construction, DIN 2353 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

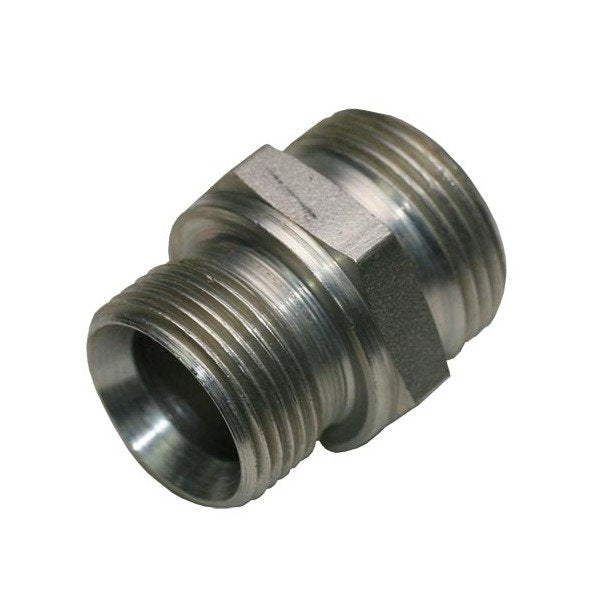

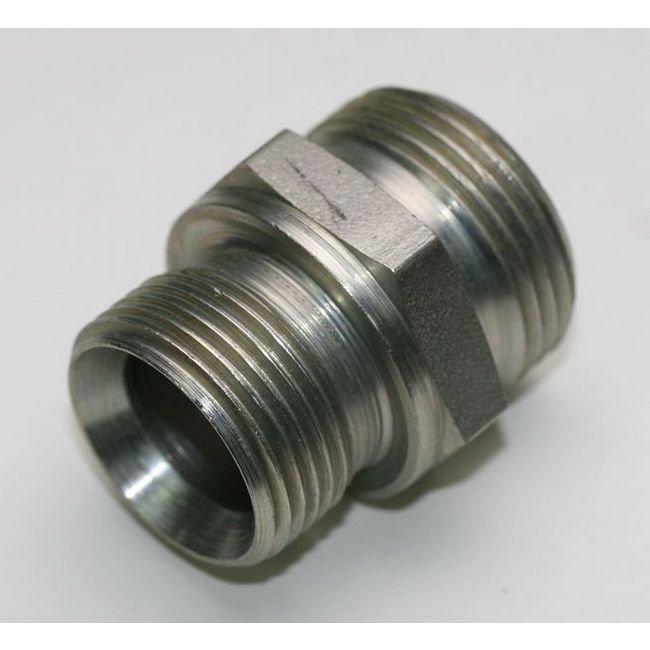

The Male Stud Coupling with O-Ring and Washer is designed for extra light duty applications with a nominal operating pressure of 100 bar. Constructed from high-quality carbon steel, this coupling ensures durability and reliability. Featuring a G-Thread Size of 1/8 and meeting DIN 2353 standards, this coupling offers precise fitting for a tube diameter of 4.0 mm. With dimensions L1: 13.3 mm, L2: 9.3 mm, L3: 6.7 mm, and CH1: 14 mm, this coupling guarantees a secure and leak-free connection.

Product Specifications

Specifications Ch1

14 mm

Specifications G Thread Size

1/8

Specifications L1

13.3 mm

Specifications L2

9.3 mm

Specifications L3

6.7 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

100 bar

Specifications Pressure

Extra Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

4.0 mm
