Male Stud Coupling with O-Ring and Washer BSP Parallel - DIN 2353 Compliant

Male Stud Coupling with O-Ring and Washer BSP Parallel - DIN 2353 Compliant

SKU:FIT-080704

High-quality Male Stud Coupling with O-Ring and Washer for BSP Parallel threads. DIN 2353 compliant.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Male Stud Coupling with O-Ring and Washer BSP Parallel - DIN 2353 Compliant

Male Stud Coupling with O-Ring and Washer BSP Parallel - DIN 2353 Compliant

$24.99

Quantity: 1

Claim Your Seller Account

Male Stud Coupling with O-Ring and Washer BSP Parallel - DIN 2353 Compliant

Male Stud Coupling with O-Ring and Washer BSP Parallel - DIN 2353 Compliant

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Male Stud Coupling with O-Ring and Washer Thread BSP Parallel - Equipped B4 Ring is designed for light-duty applications with a nominal operating pressure of 160 bar. Made of carbon steel, it features a tube diameter of 22 mm, G-thread size of 3/4, and Elastometric Viton Seal for reliable sealing. This coupling meets DIN 2353 standards, ensuring quality and performance for various hydraulic systems.

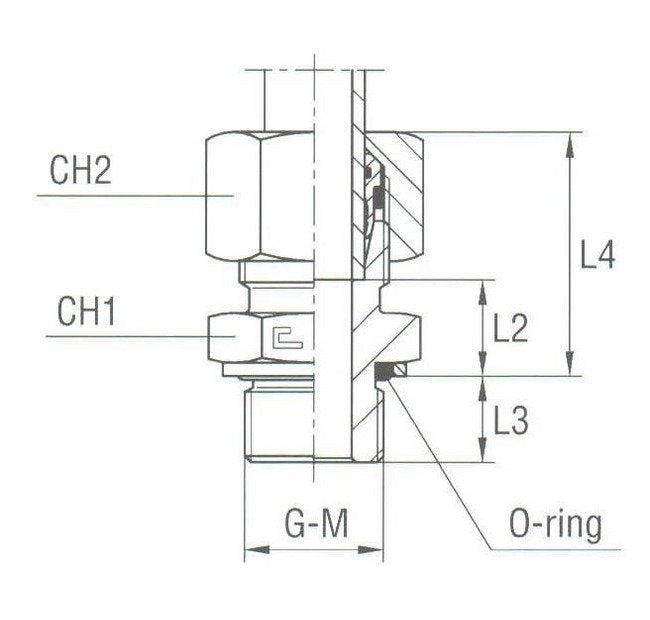

Product Specifications

Specifications Ch1
36 mm
Specifications Ch2
36 mm
Specifications G Thread Size
3/4
Specifications L2
16.3 mm
Specifications L3
14.2 mm
Specifications L4
32.8 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Sealing
Elastometric Viton Seal
Specifications Standards
DIN 2353
Specifications Tube Diameter
22 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread BSP Parallel
