Male Stud Coupling with O-Ring - Carbon Steel, DIN 2353 Compliant
Male Stud Coupling with O-Ring - Carbon Steel, DIN 2353 Compliant
SKU:FIT-f062af
High-performance Male Stud Coupling with O-Ring. Carbon steel, DIN 2353 compliant. Ideal for light-duty applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Male Stud Coupling with O-Ring - Carbon Steel, DIN 2353 Compliant
$24.99
Quantity: 1
Claim Your Seller Account
Male Stud Coupling with O-Ring - Carbon Steel, DIN 2353 Compliant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Coupling with O-Ring and Washer Thread Metric Parallel - Equipped B3 Ring is designed for light-duty applications with a robust carbon steel construction. With a tube diameter of 35.0mm and M-thread size of 42x2, this coupling ensures a nominal operating pressure of 160 bar. It meets DIN 2353 standards, guaranteeing reliability and durability for industrial use.
Ready to Grow Without Cash Flow Constraints?

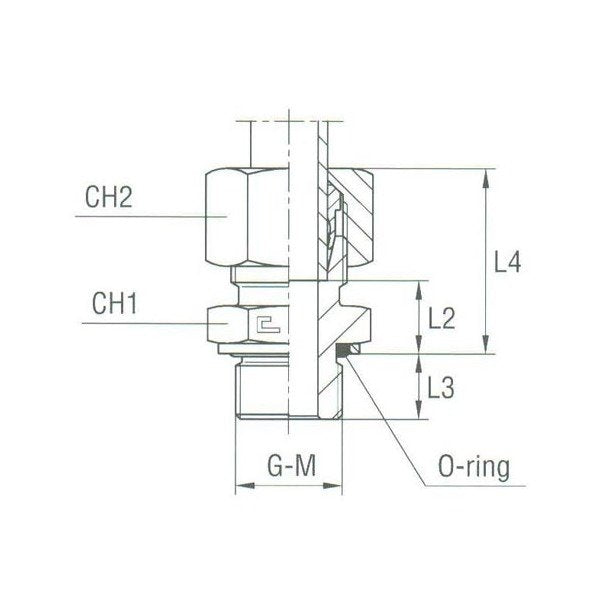

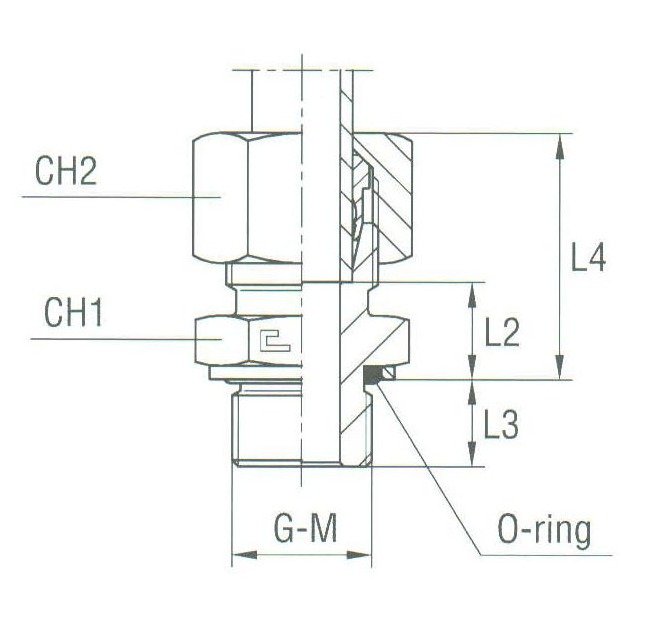

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
50 mm
Specifications L2
17.5 mm
Specifications L3
17.0 mm
Specifications L4
39.0 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
42x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
35.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread Metric Parallel
